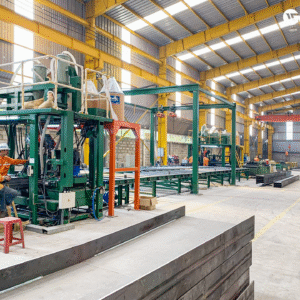

With the steel structure production line system, the equipment in the line is closely connected with each other, the workpiece is transferred fully automatically through the roller conveyor system.

  • Compact design, flexible, easy to operate and highly efficient
  • The machine has 2 operating modes Auto and Manual, using PLC convenient for workers to operate, with anti-clogging sensor.
  • There are 02 high-capacity vacuuming silos, each silo has 9 dust filters, ensuring maximum dust collection during work (without affecting the environment).
  • The machine uses Q034 turbine with high cleaning efficiency, low noise

  • Machine frame: 01 set
  • Welding torch and center pulling rod system: 02 sets.
  • Welding guide device: 02 sets
  • Flux recovery system: 02 sets.
  • Welding source: 4 sets Megmeet Artsen CM500R and 2 sets MZ1000 Jasic.
  • Control system: 01 control cabinet, 01 control handle.
  • Hose and cable system

Khối lượng:> 100 Kg
Điện áp vào (V):3 pha 380 VAC

  • Machine frame: 01 set
  • Welding torch and center pulling rod system: 02 sets.
  • Flux recovery system: 02 sets
  • Welding source: 4 sets Megmeet Artsen CM500R
  • Control system: 01 control cabinet, 01 control handle.
  • Hose and cable system

Khối lượng:> 100 Kg
Điện áp vào (V):3 pha 380 VAC

  • Integrating 3 functions of attaching, welding and straightening on the same body system, is a solution to flexibly meet the needs of customers, helping to increase productivity, optimize space and cost
  • The body is sturdy and stable
  • Using Tandem MIG 2-wire technology under the drug layer for high speed and weld quality
  • The welding source used for the machine is a welding source for robots with many advantages such as a wide, stable and durable input voltage range. The wire feed of the welding source has an Encoder that controls the wire speed, making the welding current stable and ensuring the quality of the weld.

  • BZJ2000-S1 Plus has a smart welding controller with interactive touch screen which is capable to program, manage information, store
    data, connect Ethernet and report errors…
  • BZJ2000-S1 is preinstalled a set of welding / assembling parameters data. Thus, the operation process is more convenient and limits
    errors when installing by operators.
  • BZJ2000-S1 has a monitoring user funtion to help evaluate performance.
  • Centering pulling rod system includes 4 rollers (press flange) and 8 rollers (press web), moves by screw and slider to get high accuracy.
  • Guide roller of compression cylinder is designed large size, strong, stable and easy to adjust.
  • Welding torch is located at the optimal position, as a result, the assembly point is very accurate.
  • Torch clamping device is designed strong and flexible ensure that the assembly point is always in the right position.
  • The main motor locates under the machine body to save space and keep safely when operating.
  • Hydraulic system is compact with only 160L oil tank.
  • 30% higher productivity compared to normal machines

Khối lượng:> 100 Kg
Điện áp vào (V):3 pha 380 VAC

  • Integrating a set of optimal welding heads in terms of technology and size, ensuring that a variety of beam sizes can be welded.
  • Using 2-wire 2 independent arc welding technology with 04 (or 08) Artsen CM500R Megmeet welding sources, with a large welding data system, automatically calculating welding parameters. Optimum user action on the touch screen control panel.
  • Application of Tandem MIG welding technology under the drug layer for fast welding speed, high weld quality. Welding source is a source for robots with many advantages such as wide input voltage range, stability, and durability.
  • The wire feed of the welding source has an Encoder that controls the wire speed, making the welding current stable and the highest quality weld.
  • Pre-installed welding DATA kit, maximum support during operation, easy training of operators, optimizing labor costs.
  • Equipped with user data monitoring to help evaluate work efficiency. Measure parameters of welding meters, welding time, machine downtime for each production shift.
  • The machine has built-in Ethernet IP connection to connect to SCADA or MES systems. The data in the machine will be sent to the server to give aggregates and display reports by shift/day/month/quarter

  • Machine frame: 01 set
  • Welding torch and center pulling rod system: 02 sets.
  • Welding guide device: 02 sets
  • Flux recovery system: 02 sets.
  • Welding source: 4 sets Megmeet Artsen CM500R and 2 sets Jasic MZ1000.
  • Control system: 01 control cabinet, 01 control handle.
  • Hose and cable system

Khối lượng:> 100 Kg
Điện áp vào (V):3 pha 380 VAC
