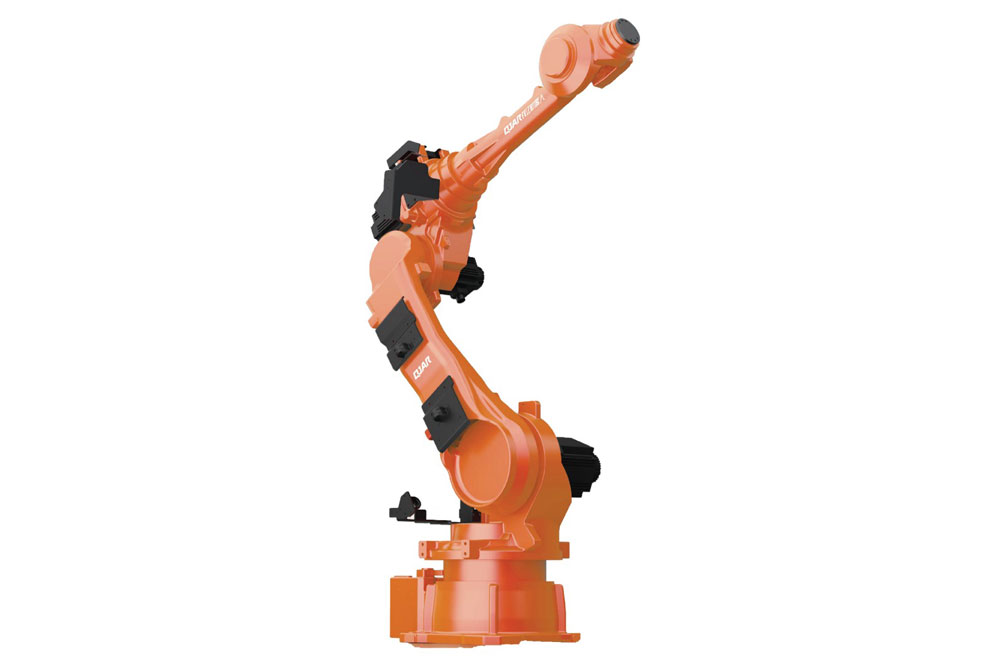

Robot QJAR QJR50-1

Home Industrial Robot Robot QJAR QJR50-1

Print page

Compact design, large working space.
Flexible installation in various positions.
Load capacity of 50 kg, maximum robot reach up to 2 m.
Fast response capability, high precision.
Applications in welding, disassembly, loading and unloading, handling, sorting, assembly, and many other applications.

Main Features

High speed and efficiency, manpower saving, small footprint, easy operation, flexibility, and low energy consumption
Robot QJAR QJR50-1 is suitable for tasks: welding, picking, milling, and assembly
Load capacity from 3kg – 210kg; Reach from 750.6mm – 2683.4mm

Industrial robots are applied in the food industry, petrochemicals, pharmaceuticals, electronic component manufacturing, automatic feeding lines, logistics, etc.

Model		QJR50-1
Number of axes		6
Load capacity		50kg
Repeatability		±0.07mm
Maximum reach		2012.4mm
Working range	J1	±180º
	J2	﹢ 135º, ﹣90 º
	J3	﹢82 º, -205 º
	J4	±360º
	J5	+120°
	J6	±360º
Maximum speed	J1	155 °/second
	J2	120 °/second
	J3	155 °/second
	J4	250°/second
	J5	250°/second
	J6	350 °/second
Robot weight		580kg
Power consumption		10 kVA
Power supply		380V ± 10%, 3-phase 4-wire
Installation position		Floor
Application		Welding, picking, milling, assembly

If you are interested in Robot QJAR QJR50-1, please contact Weldcom via hotline or leave your information so we can provide detailed support.
