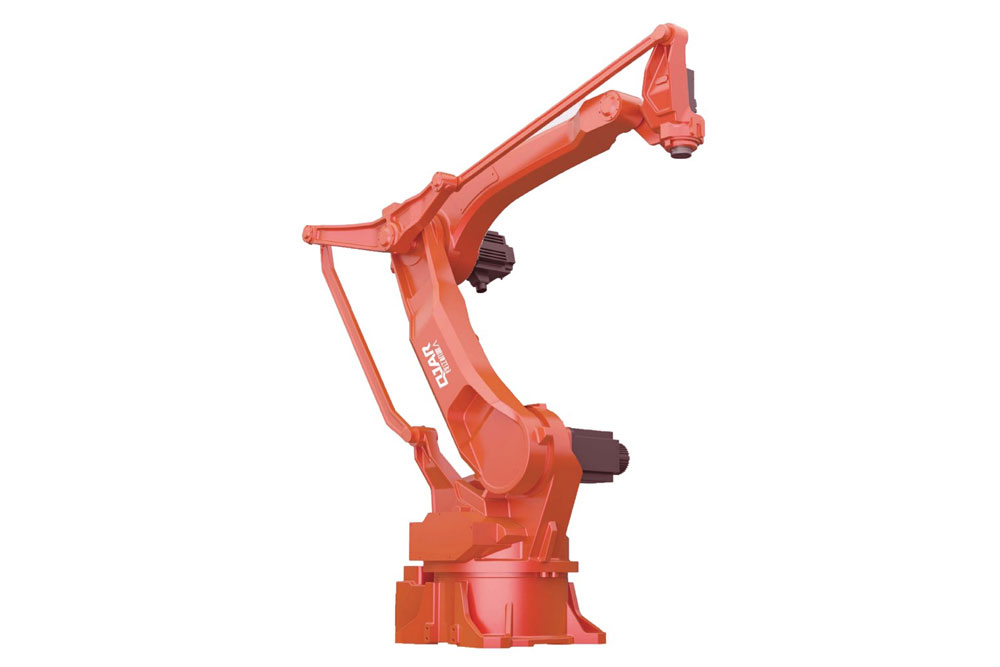

QJAR QJRB30-1 handling robot

Print page

The entire robot axis operates at low output power, providing high speed and stability.
The simple robot design is integrated with specialized stacking software.
Widely applied in smart manufacturing industries such as furniture, F&B, and 3C, serving for sorting, selecting, packaging, handling, and loading/unloading goods.

Get Quote Now

Main Features

Robot easy to operate, automatic and improve productivity
Load capacity from 15kg – 800kg; Reach from 1510mm – 3155mm
Robot QJAR QJRB30-1 used in stamping machine feeding, food, furniture, and packaging

Application fields

Production lines for canned goods, bags, food, household items

Technical specifications of Robot QJAR QJRB30-1

Model		QJRB30-1
Number of axes		4
Load capacity		30kg
Position repeatability		±0.05mm
Maximum reach		1820mm
Working range	J1	±168º
	J2	﹢ 105º, ﹣50 º
	J3	﹢105 º, - 25 º
	J4	±360º
	J5
	J6
Maximum travel speed	J1	172 °/second
	J2	172 °/second
	J3	212 °/second
	J4	355°/second
	J5
	J6
Robot weight		205kg
Power consumption		3.0 kVA
Power supply		380V ± 10%, 3 phase 4 wire
Installation position		Floor
Application		Used in stamping machine feeding, food, furniture, packaging

If you are interested in Robot QJAR QJRB30-1, please contact Weldcom via hotline or leave your information so we can provide detailed support.
