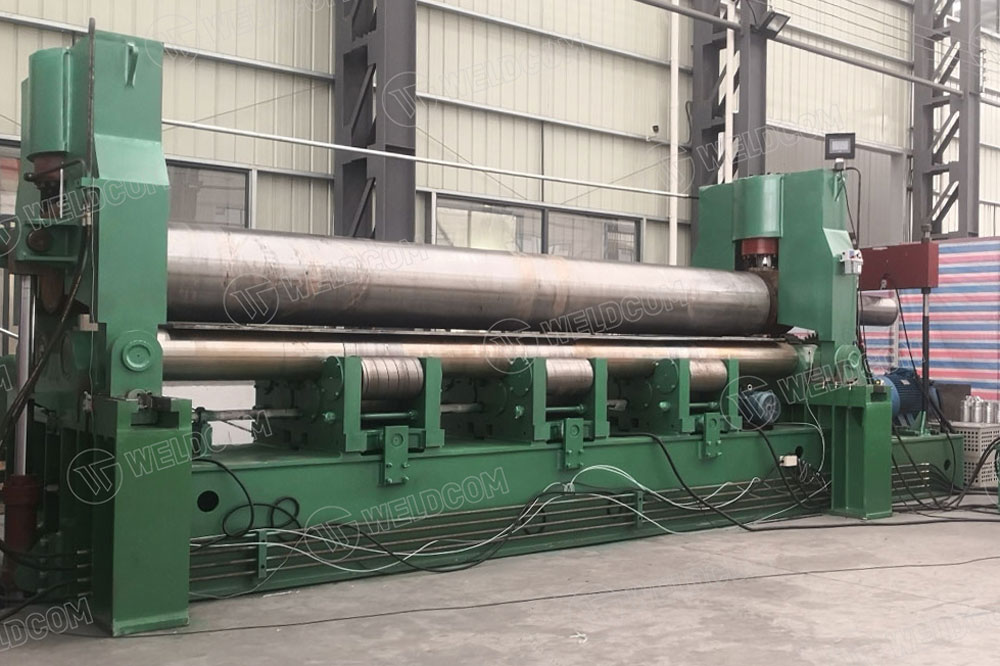

3-ROLL HYDRAULIC PLATE BENDING MACHINE WITH EDGE BENDING W11S SERIES
3-ROLL HYDRAULIC PLATE BENDING MACHINE WITH EDGE BENDING W11S SERIES
- The sheet metal rolling machine can roll sheet metal into cylindrical, arc, and conical shapes at room temperature.
- Controlled by PLC, it is easy for operators to use, helping to increase production efficiency and reduce product costs.
Main Features
- Plate Rolling Machine has the function of edge bending.
- Can roll sheet metal into cylindrical, arc, cone shapes under normal temperature conditions.
- The upper shaft of the machine can move up - down, left - right.
- Hydraulic 3-Roll Plate Rolling Machine with Edge Bending W11S Series is controlled by PLC, easy to use for operators, helping to increase production efficiency and reduce product costs.
Technical Specifications of Hydraulic 3-Roll Plate Rolling Machine with Edge Bending W11S Series
Machine Name | Plate Pressure Limit (MPa) | Max Rolling Thickness (mm) | Max Width (mm) | Upper Roll Diameter (mm) | Lower Roll Diameter (mm) | Press Force (Tons) | Distance to the Center of 2 Lower Rolls (mm) | Main Motor Power (kW) | Auxiliary Motor Power (kW) | Hydraulic Motor Power (kW) | Minimum Rolling Diameter at Full Load (mm) |
| W11S-6x2000 | 245 | 6 (5) | 2000 | 210 | 140 | 50 | 180 | 4kW-6p | 1.5kW-4p | 2.2kW-4p | 360 |
| W11S-8x2000 | 245 | 6 (5) | 2000 | 220 | 140 | 50 | 180 | 4kW-6p | 1.5kW-4p | 2.2kW-4p | 380 |
| W11S-10x2000 | 245 | 10 (8) | 2000 | 240 | 145 | 60 | 200 | 5.5kW-6p | 1.5kW-4p | 2.2kW-4p | 410 |
| W11S-12x2000 | 245 | 12 (10) | 2000 | 255 | 150 | 75 | 245 | 7.5kW-8p | 2.2kW-4p | 4kW-4p | 430 |
| W11S-16x2000 | 245 | 16 (12) | 2000 | 270 | 150 | 80 | 245 | 7.5kW-8p | 2.2kW-4p | 4kW-4p | 450 |
| W11S-20x2000 | 245 | 20 (16) | 2000 | 300 | 165 | 130 | 270 | 11kW-8p | 2.2kW-4p | 5.5kW-4p | 500 |
| W11S-16x2500 | 245 | 16 (12) | 2500 | 325 | 165 | 130 | 270 | 11kW-8p | 2.2kW-4p | 5.5kW-4p | 550 |
| W11S-25x2000 | 245 | 25 (20) | 2000 | 330 | 180 | 160 | 300 | 15kW-8p | 2.2kW-4p | 7.5kW-4p | 600 |
| W11S-20x2500 | 245 | 20 (16) | 2500 | 330 | 180 | 160 | 300 | 15kW-8p | 2.2kW-4p | 7.5kW-4p | 600 |
| W11S-30x2000 | 245 | 30 (25) | 2000 | 380 | 220 | 230 | 360 | 22kW-8p | 4kW-4p | 7.5kW-4p | 750 |
| W11S-25x2500 | 245 | 25 (20) | 2500 | 380 | 220 | 200 | 360 | 22kW-8p | 4kW-4p | 7.5kW-4p | 700 |
| W11S-30x2500 | 245 | 30 (25) | 2500 | 410 | 235 | 270 | 380 | 30kW-8p | 4kW-4p | 11kW-4p | 750 |
| W11S-35x2500 | 245 | 35 (30) | 2500 | 465 | 260 | 320 | 420 | 37kW-8p | 5.5kW-4p | 15kW-4p | 850 |
| W11S-30x3200 | 245 | 30 (25) | 3200 | 465 | 260 | 350 | 420 | 37kW-8p | 5.5kW-4p | 15kW-4p | 850 |
| W11S-40x2500 | 245 | 40 (32) | 2500 | 510 | 270 | 430 | 460 | 45kW-10p | 7.5kW-4p | 22kW-4p | 900 |
| W11S-40x3200 | 245 | 40 (32) | 3200 | 540 | 290 | 420 | 500 | 55kW-10p | 7.5kW-4p | 22kW-4p | 1000 |
| W11S-50x2500 | 245 | 50 (40) | 2500 | 580 | 320 | 540 | 580 | 45kW-10p | 11kW-4p | 22kW-4p | 1000 |
| W11S-50x3200 | 245 | 50 (40) | 3200 | 600 | 340 | 580 | 610 | 55kW-10p | 11kW-4p | 22kW-4p | 1500 |
| W11S-60x2500 | 245 | 60 (50) | 2500 | 620 | 360 | 610 | 650 | 75kW-10p | 15kW-6p | 30kW-4p | 1600 |
| W11S-60x3200 | 245 | 60 (50) | 3200 | 650 | 380 | 690 | 700 | 75kW-10p | 15kW-6p | 30kW-4p | 2000 |
| W11S-70x3200 | 245 | 70 (60) | 3200 | 700 | 400 | 850 | 750 | 75kW-10p | 15kW-6p | 30kW-4p | 2500 |
| W11S-80x3200 | 245 | 80 (65) | 3200 | 850 | 440 | 930 | 820 | 90kW-10p | 15kW-6p | 45kW-4p | 2500 |
| W11S-100x3200 | 245 | 100 (80) | 3200 | 860 | 480 | 1350 | 920 | 110kW-10p | 22kW-6p | 45kW-4p | 2500 |
| W11S-120x3200 | 245 | 120 (100) | 3200 | 960 | 560 | 1600 | 1080 | 132kW-10p | 30kW-6p | 55kW-4p | 2500 |
| W11S-150x3200 | 245 | 150 (120) | 3200 | 1000 | 600 | 2500 | 1200 | 150kW-10p | 37kW-6p | 75kW-4p | 2500 |
| W11S-160x3500 | 245 | 160 (130) | 3500 | 1200 | 640 | 3000 | 1300 | 180kW-10p | 37kW-6p | 90kW-4p | 3000 |
| W11S-180x3500 | 245 | 180 (150) | 3500 | 1300 | 680 | 4200 | 1400 | 220kW-10p | 45kW-6p | 110kW-4p | 3500 |
Customers interested in the Hydraulic 3-Roll Plate Rolling Machine with Edge Bending W11S Series please contact Weldcom via hotline or leave information so we can provide detailed support.
