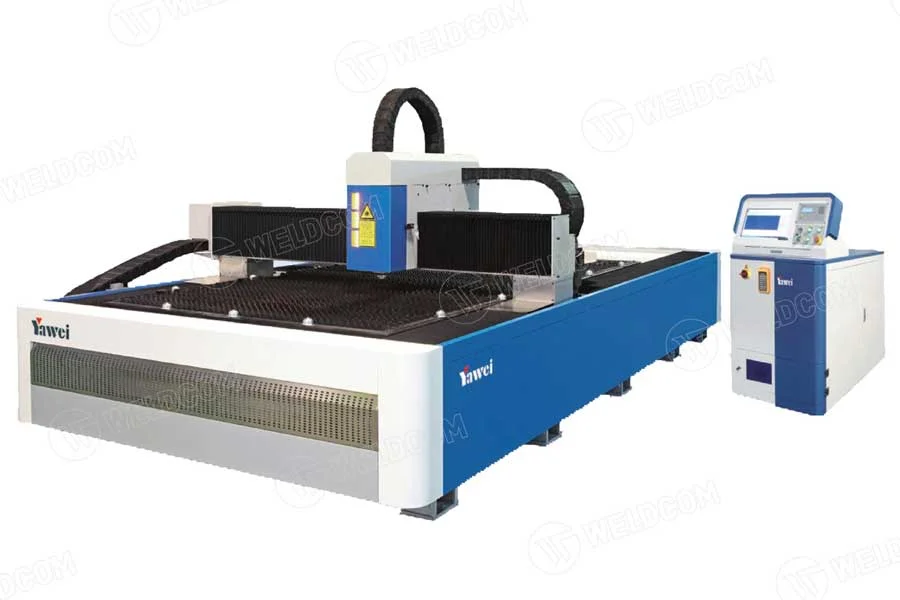

Features of the Yawei HLA 6020 fiber laser cutter

Laser cutter body

• The CNC cutting machine frame structure is made from high-quality steel plates. The machine beam is lightweight, processed by CNC milling machines for high efficiency and faster acceleration.
• The machine body is uniformly heated in a thermal processing room to completely eliminate residual stress, ensuring material uniformity and stable operation for up to 20 years.
• The workpiece support table is designed with independent compartments that open and close synchronously with the cutting head position, ensuring more thorough dust extraction and saving energy (as it requires a much lower power extractor compared to common compartments), simplifying cleaning tasks.

Motor and transmission:

• PMI Taiwan linear guide with high precision, low wear, easy installation and replacement, can be used for a long time.
• Yaskawa – Japan AC Servo motor operates powerfully, stably, accurately, and durably over time.
• Apex's reducer, rack/gear are famous Taiwanese brands ensuring stable machine operation, maintaining accuracy over time.

Laser source:

• Yawei HLA 6020 fiber laser cutter is equipped with IPG – USA/GERMANY/RUSSIA cutting source for stable, thick, and beautiful cutting quality on various materials.
• Specialized industrial air conditioning with a source ≥ 1000W ensures stable and durable operation of the laser source in a consistently stable temperature environment.
• Compact Plug and Play module design, easy to install, high reliability, long lifespan without maintenance.
• Diode lifespan up to 100,000 hours.
• Maximizes fiber optic transmission capability, laser is directly transmitted through fiber optics to the cutting head, simple mechanical structure, continuous light path, less maintenance, and stable cutting performance.
• IPG is the source occupying 70% of the current laser source market share. Stable quality.
• Superior protection modes, shock resistance when sudden power loss, anti-reflection protection mode. Good error encoding and warning system.
• Ability to maintain power source according to rating for 2 years, IPG loses only about 5% of power, while Chinese sources lose 10-15% or more.
• Laser cutter supports remote expert handling in case of incidents.

Raytool Autofocus laser cutting head:

• Raytools – Switzerland is a leading brand of laser cutting heads in the world. Raytools cutting head provides perfect cut quality, easy to disassemble, clean, and maintain.
• Autofocus function allows the cutting head to automatically adjust the focal length suitable for the material thickness.
• Raytools equips the cutting head with a single ring nozzle for Oxygen gas and a double ring for Nitrogen gas to ensure suitability for each type of material.
• Equipped with an automatic capacitance monitoring system, can adjust the maximum focal length, ensuring the best cutting quality, reducing material waste due to non-uniform materials.
• The protective lens is located inside the cutting head to protect important, expensive components.
• The circulating water cooling system ensures the cutting head always operates in a stable temperature environment.
• Consistent cutting nozzle quality, long lifespan.

Gas control system

• Equipped with a solenoid valve to prevent gas pipe explosion when pressure increases too suddenly, saving gas and ensuring laser cutting head safety.

See more: CNC Plasma Cutting Machine Quotation

Controller – industrial computer

• Equipped with a central control computer (IPC) which is a SIMATIC PC imported from Siemens.
• Specialized for industrial equipment requiring high signal processing speed.
• With the Simatic PC, the laser machine can operate continuously 24/7 while ensuring signal communication speed and device stability.
• Other brands, when running multiple software simultaneously (cutting software, CAD, opening PDF files, work) usually freeze and need to be restarted, greatly affecting the operation process leading to mid-process workpiece damage. With Siemens equipped with RAM processing from 4GB – 8GB, this situation does not occur.

Cooling system

• During operation, the laser source and laser cutting head are the two components that generate and endure the most heat. If not cooled in time, these two components will increase in temperature very quickly, leading to rapid burnout of the equipment.
• The Yawei-E series Laser Cutter uses a chiller from Tongfei, the most reputable cooling equipment manufacturer in China.
• The chiller is equipped with a circulation pump system and components such as a tank, pipes, and cooling valves made from stainless steel, with high flow, low noise, and long lifespan.
• The chiller is equipped with an RS485 communication port to communicate signals with the central controller, reporting the status and operation process of the chiller to the controller.

Equipped with a voltage stabilizer for the Laser source

• Any laser source operation requires stable voltage, with the voltage range in Vietnam being 380V ± 20V, voltage stabilization is extremely important.
• Some manufacturers do not equip it but often require customers to equip it.
• The voltage stabilizer not only maintains the voltage at a stable level but also eliminates electrical surges, helping the IPG source operate stably and increasing lifespan.

Programming and control software

The Shanghai Cypcut6.3 controller can provide graphics capabilities, parameter setup, simulation, and classification, etc.

Hardware specifications

• USB2.0 Port, support U disk read-write
• Control axis: 2 axis in line and Arc interpolation
• Motor: Servo motor
• Power-off protection, strong impact resistance

Software features

• Users can operate directly, easily, and accurately
• Can save any file parameters
• Supports AI.DXF, PLT graphics software, G code extracted from MaterCam, type3. When loading DXF files, information can be filtered from AutoCAD
• Automatically checks loaded files
• Optional feature: automatic nesting

Power noise filter

High-speed cutting machines, motors, during startup and operation, these devices will generate carrier waves (harmonic waves) that feedback into the surrounding system, causing the sine wave amplitude of the power source to change continuously or create voltage surges.

Increases the heat generation of the devices.

• Affects lifespan and transmission capability.
• Affects protective devices, causing incorrect actions on CBs, fuses, protective relays, affects measuring devices, sensors
• Affects communication devices. Such as drivers and controllers

Technical specifications of the Yawei HLA 6020 fiber laser cutter

Customers interested in the Yawei HLA 6020 fiber laser cutter please contact Weldcom via hotline or leave information so we can provide detailed support.
