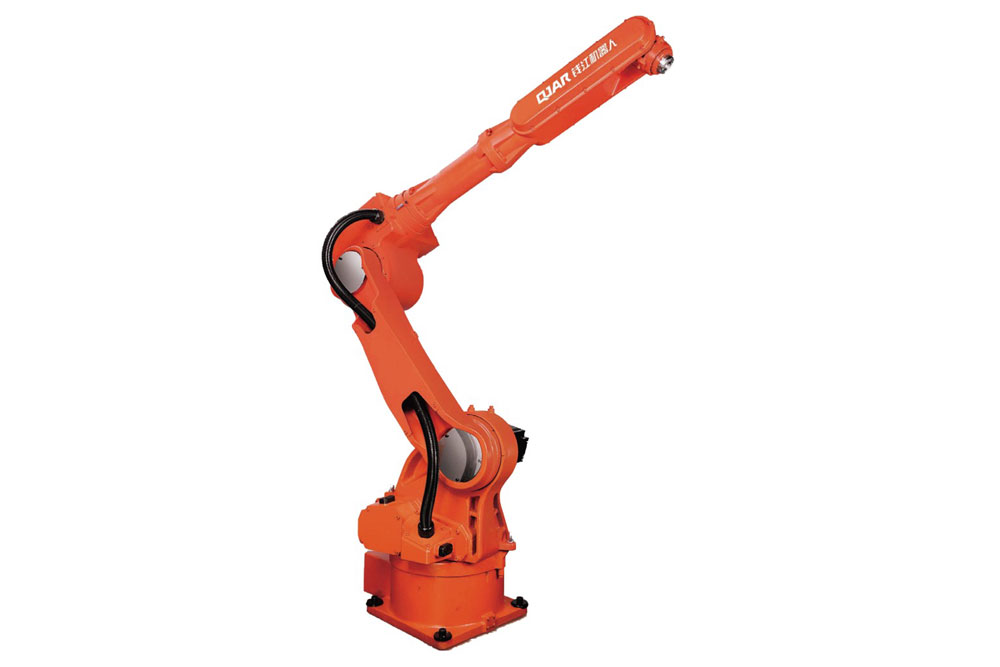

Robot QJAR QJR6-3

Home Industrial Robot Robot QJAR QJR6-3

Print page

Compact design, large working space. Flexible installation in many positions.
Maximum robot reach up to 2 m.
Fast response capability, high precision.
Applications in welding, loading and unloading, handling, sorting, assembly, and many other applications.

Main Features

Paint spraying robot specialized for spraying paint, enamel, and other adhesives
The working space of QJAR QJR6-3 paint spraying robot up to 5000mm x 3000mm
Flexible spraying angle, maximum spraying efficiency up to 90-95%, reducing material waste
6-axis robot capable of automatic spraying programming using Laser technology and optical sensors without manual operation

Robot applications in the automotive industry, furniture, and plastic industry

Model		QJR6-3
Number of axes		6
Load capacity		6kg
Position repeatability		±0.05mm
Maximum reach		2001mm
Working range	J1	±172º
	J2	﹢ 166º, ﹣100 º
	J3	﹢83 º, ﹣92 º
	J4	±170º
	J5	+125°
	J6	±360º
Maximum moving speed	J1	172 °/second
	J2	172 °/second
	J3	201 °/second
	J4	430°/second
	J5	447 °/second
	J6	573 °/second
Robot weight		225kg
Power consumption		3.8 kVA
Power supply		380V ± 10%, 3-phase 4-wire
Installation position		Floor, ceiling
Application		Handling, assembly, product sorting, paint spraying

Contact Weldcom at hotline 1900 9410 to own the genuine QJAR QJR6-3 automatic paint spraying robot and receive dedicated after-sales service.
