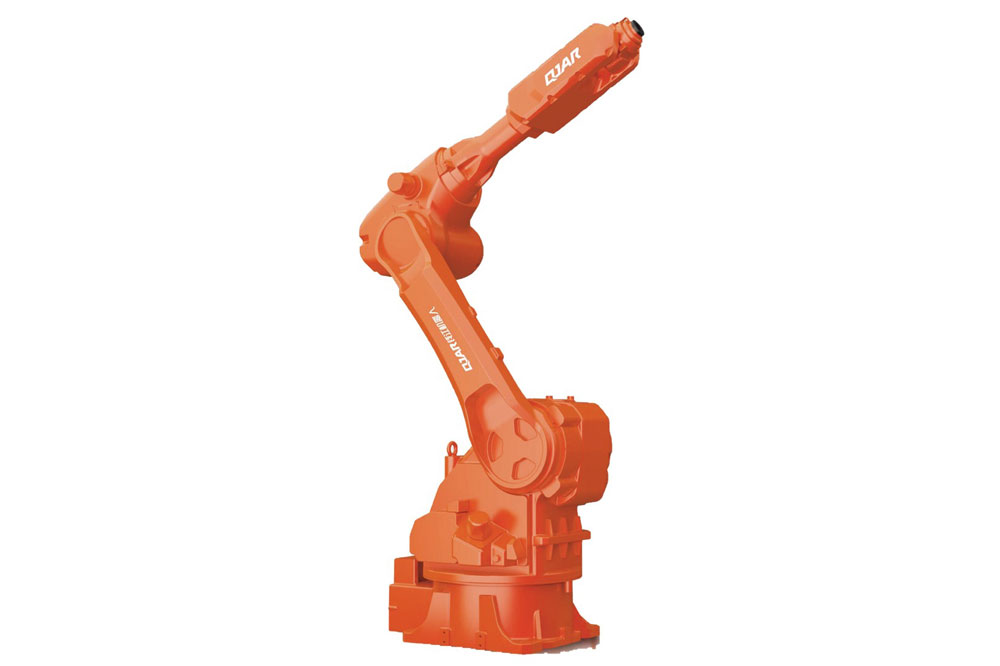

Robot QJAR QJR20-1600
Robot QJAR QJR20-1600
Print page
- Compact design, large workspace.
- Quick response capability, high accuracy.
- Applications in loading and unloading, laser cutting, painting, polishing, and many other applications.
Main Features
- Robot QJAR QJR20-1600 possesses high speed and efficiency, saves manpower, occupies small space, easy to operate, flexible, and low energy consumption
- Industrial robot suitable for loading and unloading, laser cutting, painting, polishing, and many other applications.
- QJAR QJR20-1600 has a load capacity from 3kg – 210kg; Reach from 750.6mm – 2683.4mm
Application fields
- Food, Petrochemical, Pharmaceutical, Electronic component manufacturing, Automatic feeding lines, Logistics …
Technical specifications of Robot QJAR QJR20-1600
| Model | QJR20-1600 | |
| Number of axes | 6 | |
| Load capacity | 20kg | |
| Position repeatability | ±0.05mm | |
| Maximum reach | 1669mm | |
| Working range | J1 | ±172º |
| J2 | ﹢ 147º, ﹣115 º | |
| J3 | ﹢83 º, -98 º | |
| J4 | ±167º | |
| J5 | +115° | |
| J6 | ±360º | |
| Maximum moving speed | J1 | 155 °/second |
| J2 | 155 °/second | |
| J3 | 172 °/second | |
| J4 | 355°/second | |
| J5 | 355 °/second | |
| J6 | 355 °/second | |
| Robot weight | 270kg | |
| Power consumption | 3.6 kVA | |
| Power supply | 380V ± 10%, 3 phase 4 wire | |
| Installation position | Floor, ceiling | |
| Application | Loading, picking, welding, laser cutting, coating, glazing, grinding, polishing | |
Contact Weldcom via hotline 1900 9410 to own the genuine robot QJAR QJR20-1600 and receive dedicated post-purchase care service.
