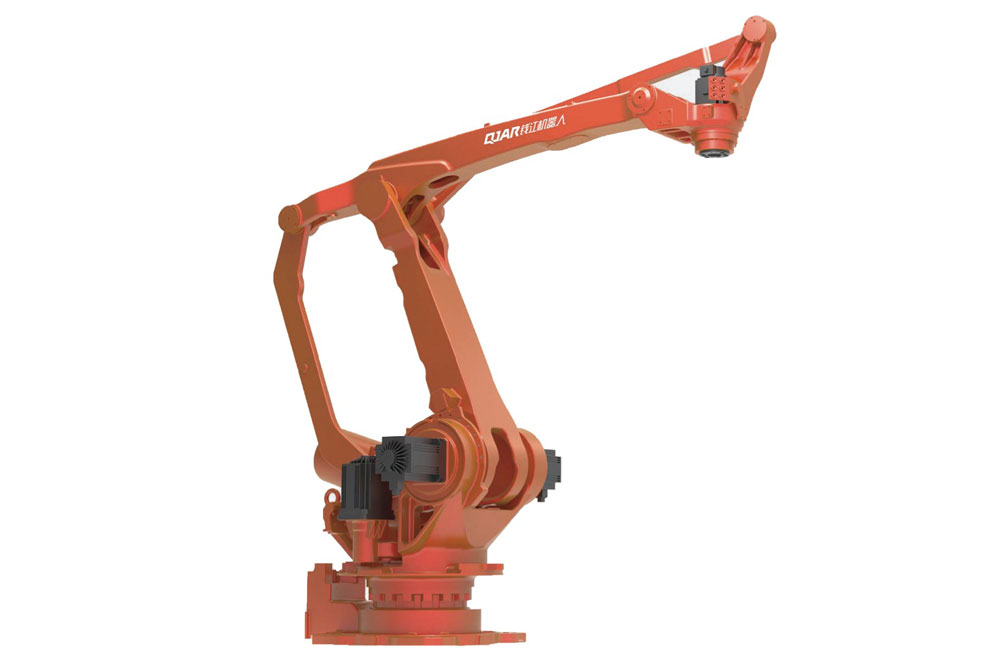

QJAR QJR260-3100M handling robot

Home Industrial Robot QJAR QJR260-3100M handling robot

QJAR QJR260-3100M handling robot

Print page

The entire robot axis operates at low output power, providing high speed and stability.
The simple robot design is integrated with specialized stacking software.
Widely applied in smart manufacturing industries such as furniture, F&B, and 3C, serving sorting, picking, packing, handling, and loading/unloading tasks.

Get Quote Now

Main Features

QJAR QJR260-3100M Loading Robot easy to operate, automatic, and improves productivity
Load capacity from 15kg - 800kg; Reach from 1510mm - 3155mm
Industrial robots used in stamping machine feeding, food, furniture, and packaging

Application fields

Production lines for canned goods, bags, food, household items

Technical specifications of QJAR QJR260-3100M Loading Robot

Model		QJR260-3100M
Number of axes		4
Load capacity		260kg
Repeatability		±0.5mm
Maximum reach		3153.7mm
Working range	J1	±170º
	J2	﹢ 95º, ﹣42 º
	J3	﹢112 º, -20 º
	J4	±360º
	J5
	J6
Maximum speed	J1	97.4 °/second
	J2	97.4 °/second
	J3	97.4 °/second
	J4	298°/second
	J5
	J6
Robot weight		1400kg
Power consumption		19.3 kVA
Power supply		380V ± 10%, 3 phase 5 wire
Installation position		Floor
Application		Used in stamping machine feeding, food, furniture, packaging

Customers interested in QJAR QJR260-3100M Loading Robot please contact Weldcom via hotline or leave information so we can provide detailed support.
