C-FRAME MECHANICAL PRESS SINGLE CRANKSHAFT - OCP

Print page

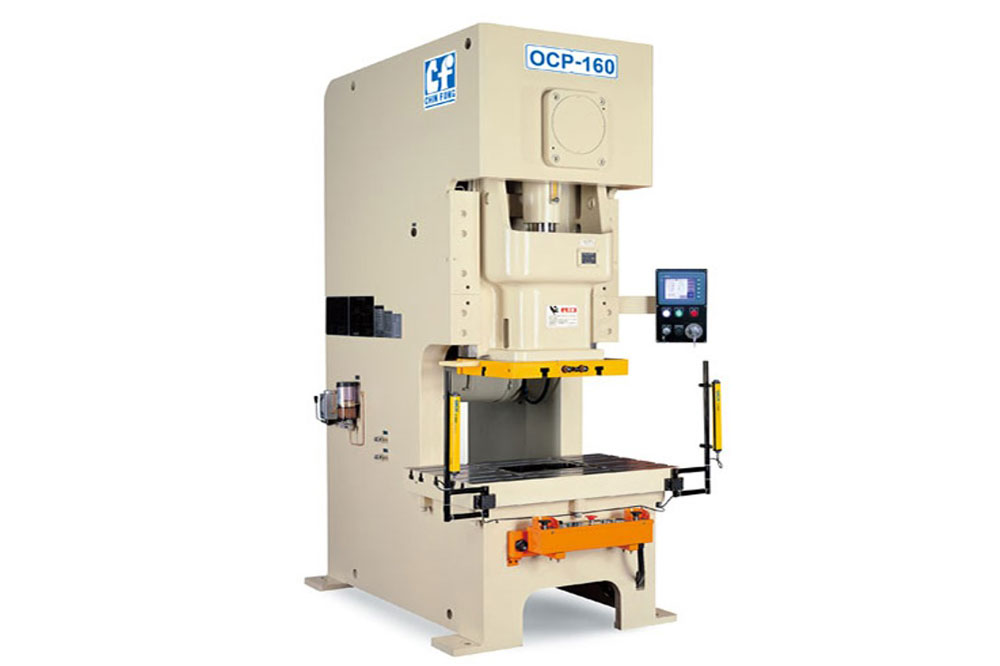

A C-frame mechanical press with a single crankshaft is an OCP series with an open back, a single crankshaft, and a "C" frame, generally designed for stamping applications such as broaching, bending, forming, stamping, punching, bending, marking, sizing, cutting... in single-stroke or continuous mode.

Get Quote Now

Main Features

OCP Single Crank C-Frame Mechanical Press features a super rigid steel frame.
Hydraulic overload protector.
Minimizes frame deflection.
High torque wet clutch & brake.
Six-point, extended, precise slide guide.
Press Machine convenient for installing the lower die ejection system.

Technical Specifications of OCP Single Crank C-Frame Mechanical Press

Product	OCP-25			OCP-35			OCP-45			OCP-60			OCP-80
	S	h	l	S	h	l	S	h	l	S	h	l	S	h	l
Capacity-ton	25			35			45			60			80
Rated load point-mm	3.2	1.6	3.2	3.2	1.6	3.2	3.2	2.3	3.2	4	2.3	4	5	3.2	5
Stroke length-mm	70	40	100	80	45	110	80	50	120	90	55	140	100	60	160
Strokes per minute-Fixed speed--SPM	-	-	95	-	-	90	-	-	80	-	-	70	-	-	60
Strokes per minute-Variable speed--SPM	75-140	95-180	55-100	70-135	90-180	50-95	65-130	85-175	50-95	60-120	80-165	40-85	55-110	75-150	40-75
Die height (SDAU)-mm	245	245	230	250	250	235	250	250	270	270	270	300	300	300	330
Bolster area (LR x FB)-mm	720x320			780x340			850x360	850x360	850x440	900x400	900x400	900x520	1000x460	1000x460	1000x600
Slide area (LR x FB)-mm	350x300			380x320			430x350			500x400			560x460

Product	OCP-160				OCP-200				OCP-260
	S	h	l	XL	S	h	l	XL	S	h	l	XL
Capacity-ton	160				200				260
Rated load point-mm	6	4	6	6	6	4	6	6	6.5	4	6.5	6.5
Stroke length-mm	130	80	200	250	150	95	200	250	180	100	250	300
Strokes per minute-Fixed speed--SPM	-	-	45	45	-	-	45	45	-	-	30	30
Strokes per minute-Variable speed--SPM	40-85	55-115	25-50	20-45	35-70	45-95	20-45	20-40	30-60	40-75	20-40	20-35
Die height (SDAU)-mm	350	35	450	450	410	410	450	450	460	460	500	540
Bolster area (LR x FB)-mm	1250x600	1250x600	1250x760	1250x760	1400x680	1400x680	1400x850	1500x820	1500x700	1500x700	1500x900	1750x900
Slide area (LR x FB)-mm	700x580				850x650				920x700

Weldcom is the official distributor of OCP Single Crank C-Frame Mechanical Presses and other equipment involved in the sheet metal processing process in Vietnam. All products are guaranteed genuine, highly accurate, and come with nationwide after-sales service.

Contact Weldcom now to receive a detailed price quote for the OCP Single Crank C-Frame Mechanical Press and get the most suitable technical consultation for your company's production needs.
