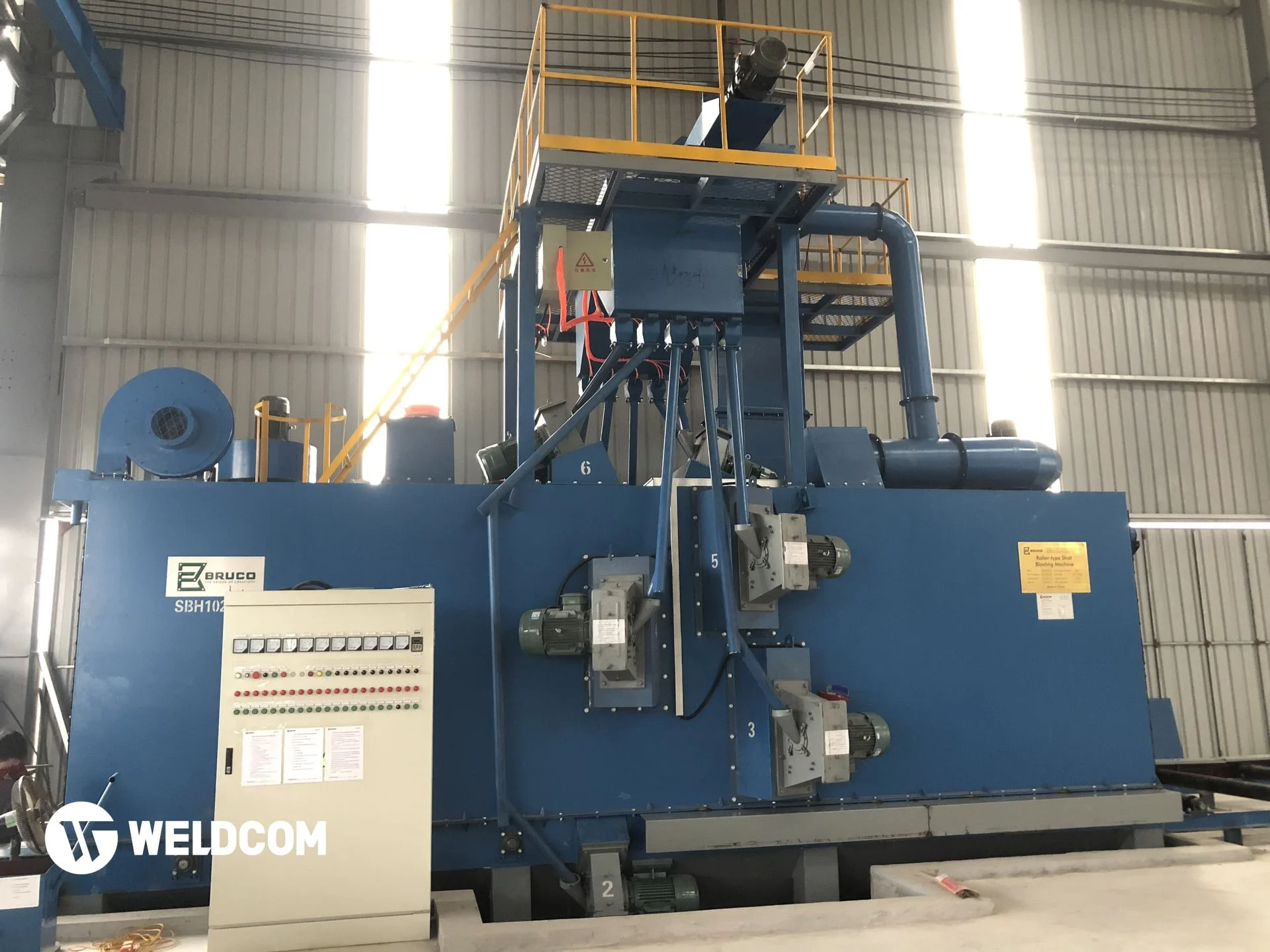

Introduction of Bruco SBH Series steel structure beam shot blasting machine

Bruco SBH Series ball blasting machine is a product highly appreciated by steel structure enterprises thanks to its neat, flexible design, easy operation and high efficiency.

• The machine has 2 operating modes Auto and Manual, using PLC convenient for workers to operate, with anti-clogging sensor.
• There are 02 high-capacity vacuuming silos, each silo has 9 dust filters, ensuring maximum dust collection during work (without affecting the environment).
• The machine uses Q034 turbine with high cleaning efficiency, low noise

Outstanding features of the Bruco SBH Series cleaning ball blaster

• The parts are precisely made and connected mainly by bolts, easy to install, easy to dismantle and easier to repair.
• Use sensor for ball scoop, avoid ball clogging when having trouble.
• Using Q034 nozzle with straight wing, easy to adjust spray direction, easy to replace vane and accessories in the nozzle.
• Ball vane life 800 working hours.
• Ball discharge pipe is steel pipe for long service life.
• The ball valve set is easy to adjust and work stably, easy to fine-tune the amount of ball (flow) for the nozzles.
• Ball filter mesh is made of perforated corrugated board with many small holes for high filtering capacity, more durable.
• Using 2 separate inlet and outlet dust extraction silos with 2 exhaust fans with a capacity of 15 kW for high dust extraction efficiency. It is possible to design additional alternate windscreens to reduce the suction of both balls.
• Using cast iron shields and stacked on top of each other in a tile-roofing style, easy to replace when 1 panel is punctured or damaged

Main parts of Bruco SBH Series steel structure beam shot blasting machine

• Spray booth
• Inlet roller conveyor
• Output roller conveyor
• Bucket lift
• Ball Separator
• Dust filter
• Electrical control system

Detailed specifications of Bruco SBH Series
