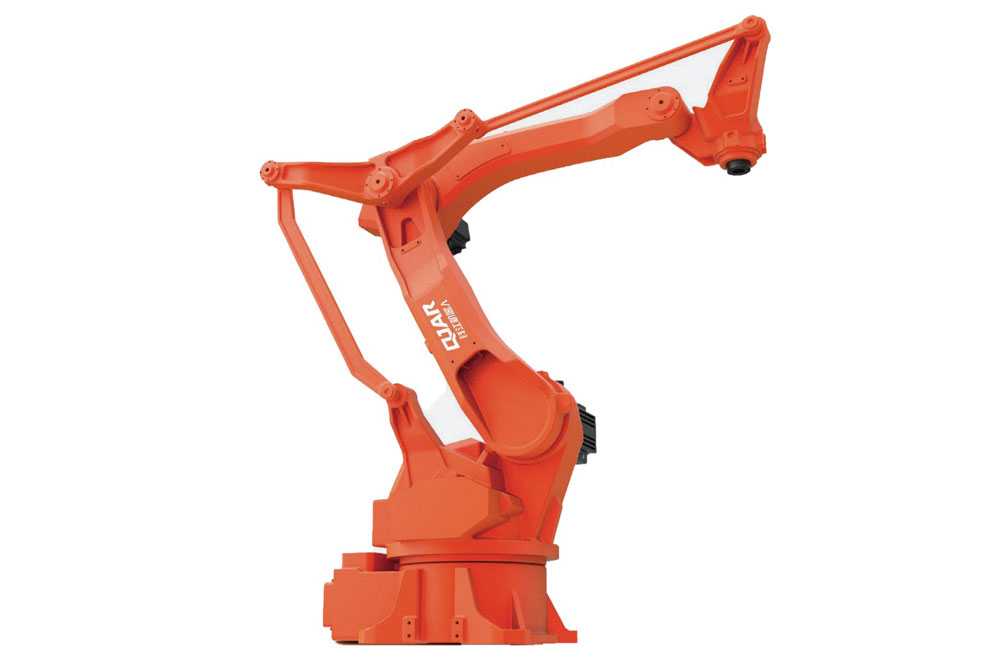

Robot QJAR QJRB15-1

Home Industrial Robot Robot QJAR QJRB15-1

Robot QJAR QJRB15-1

Print page

The entire robot axis operates at low output power, providing high speed and stability.
The simple robot design is integrated with specialized stacking software.
Widely applied in smart manufacturing industries such as furniture, F&B, and 3C, serving sorting, selecting, packaging, handling, and loading/unloading tasks.

Get Quote Now

Main Features

Industrial robot easy to operate, automatic, and improves productivity
Load capacity from 15kg – 800kg; Reach from 1510mm – 3155mm
Used in stamping machine feeding, loading and unloading

Application fields

Robot QJAR QJRB15-1 applied in production lines for packaging, bags, food, household appliances

Technical specifications of Robot QJAR QJRB15-1

Model		QJRB15-1
Number of axes		4
Load capacity		15kg
Position repeatability		±0.05mm
Maximum reach		1510mm
Working range	J1	±168º
	J2	﹢ 105º, ﹣50 º
	J3	﹢105 º, -25 º
	J4	±360º
	J5
	J6
Maximum moving speed	J1	212 °/second
	J2	212 °/second
	J3	241 °/second
	J4	573°/second
	J5
	J6
Robot weight		160kg
Power consumption		2.7 kVA
Power supply		220V ± 10%, 1 phase
Installation position		Floor
Application		Used in stamping machine feeding, loading and unloading

If you are interested in Robot QJAR QJRB15-1, please contact Weldcom via hotline or leave your information so we can provide detailed support.
