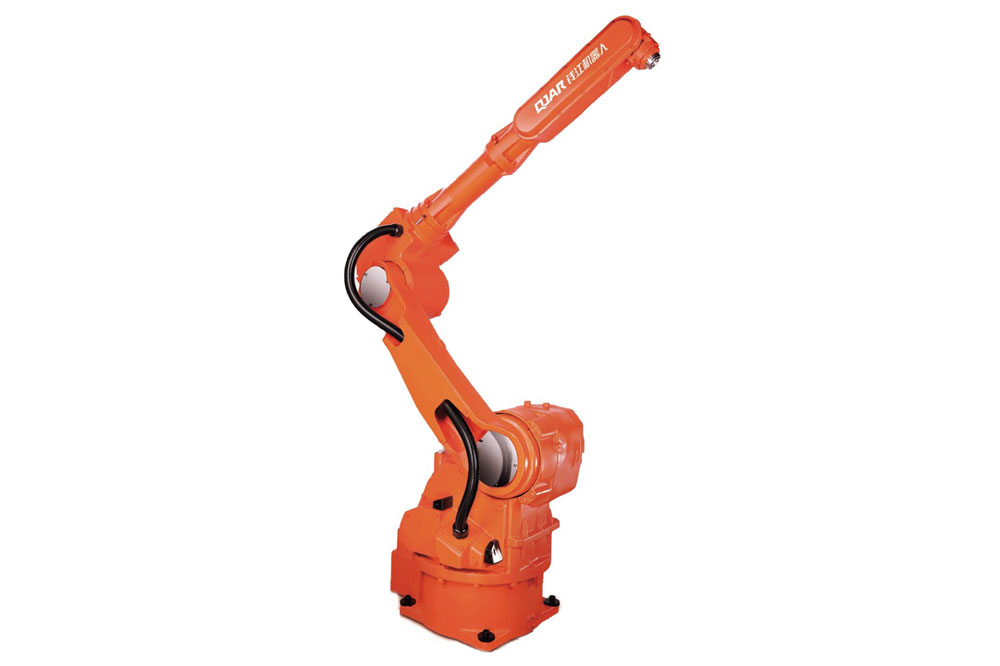

Robot QJAR QJR10-2

Home Industrial Robot Robot QJAR QJR10-2

Robot QJAR QJR10-2

Print page

Compact design, large working space.
Flexible installation in various positions.
Load capacity of 10 kg, maximum robot reach up to 2 m.
Fast response capability, high precision.
Applications in welding, spraying, loading and unloading, handling, sorting, assembly, and many other applications.

Get Quote Now

Main Features

Robot QJAR QJR10-2 performs straight to complex welding profiles with high precision
The robot provides flat, even welds, stable joints, no porosity, slag reduction, saving post-welding processing time
The product is integrated with Touch Sensors, Arc Sensor technology to adjust the weld path, ensuring weld accuracy
Paint spraying robot has the ability to integrate leading global welding sources, making parameter setting easy
Cables are mounted inside the robot body to minimize damage during operation, increase the ability to expand rotary mount connections, simple sliding rails, high precision
6-axis robot has a reach from 1410mm – 2000m

Application fields

Industrial robots are applied in the automotive industry, steel structures, shipbuilding, bridges and roads, furniture, civil engineering, etc.

Technical specifications of robot QJAR QJR10-2

Model		QJR10-2
Number of axes		6
Payload		10kg
Repeatability		±0.05mm
Maximum reach		2001mm
Working range	J1	±172º
	J2	﹢ 158º, ﹣100 º
	J3	﹢83 º, ﹣92 º
	J4	±170º
	J5	+125°
	J6	±360º
Maximum speed	J1	150 °/second
	J2	150 °/second
	J3	183 °/second
	J4	430°/second
	J5	430 °/second
	J6	602 °/second
Robot weight		275kg
Power consumption		4.2 kVA
Power supply		380V ± 10%, 3 phase 4 wire
Installation position		Floor, ceiling
Applications		Welding, picking, assembly, product sorting, painting

Contact Weldcom at hotline 1900 9410 to own the genuine QJAR QJR10-2 automatic paint spraying robot and receive dedicated after-sales service.
