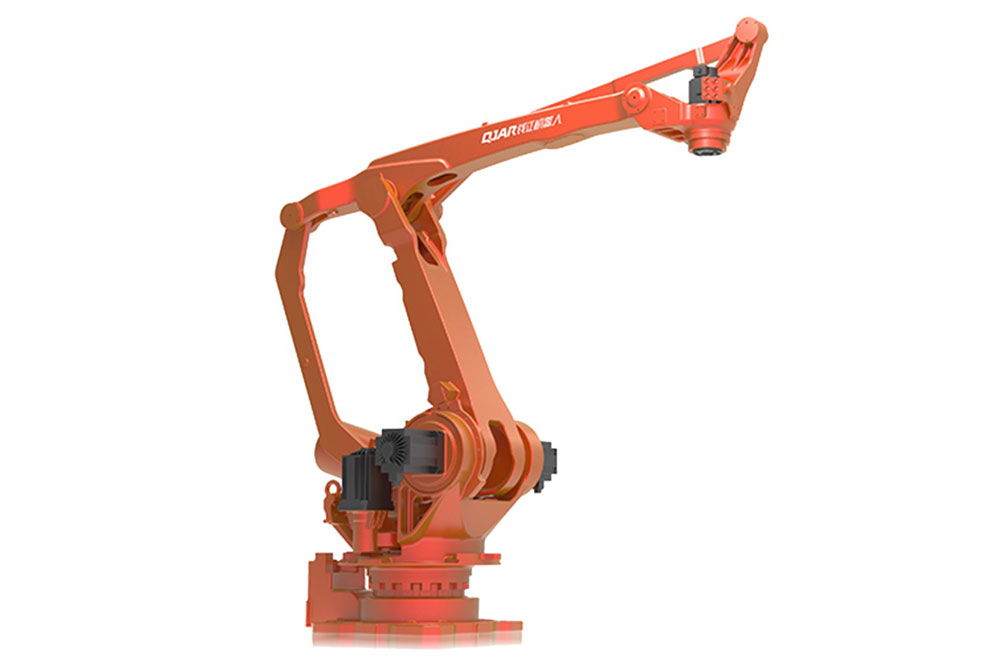

QJAR QJR130-3100M handling robot

Print page

The entire robot axis operates at low output power, providing high speed and stability.
The simple robot design is integrated with specialized stacking software.
Widely applied in smart manufacturing industries such as furniture, F&B, and 3C, serving for sorting, selecting, packaging, handling, and loading/unloading goods.

Get Quote Now

Main Features

QJAR QJR130-3100M Palletizing Robot easy to operate, automatic, and improves productivity
Load capacity from 15kg – 800kg; Reach from 1510mm – 3155mm
Robot used in stamping machine feeding, food, furniture, and packaging

Application Fields

Production lines for canned goods, bags, food, household items

Technical Specifications of QJAR QJR130-3100M Palletizing Robot

Model		QJR130 - 3100M
Number of Axes		4
Load Capacity		130kg
Position Repeatability		±0.5mm
Maximum Reach		3157mm
Working Range	J1	±182º
	J2	﹢ 97º, ﹣50 º
	J3	﹢122 º, – 22 º
	J4	±360º
	J5
	J6
Maximum Speed	J1	129 °/second
	J2	132 °/second
	J3	132 °/second
	J4	299°/second
	J5
	J6
Robot Weight		1400kg
Power Consumption		17.5 kVA
Power Supply		380V ± 10%, 3-phase 4-wire
Installation Position		Floor
Application		Used in stamping machine feeding, food, furniture, packaging

Customers interested in QJAR QJR130-3100M Palletizing Robot please contact Weldcom via hotline or leave your information so we can provide detailed support.
