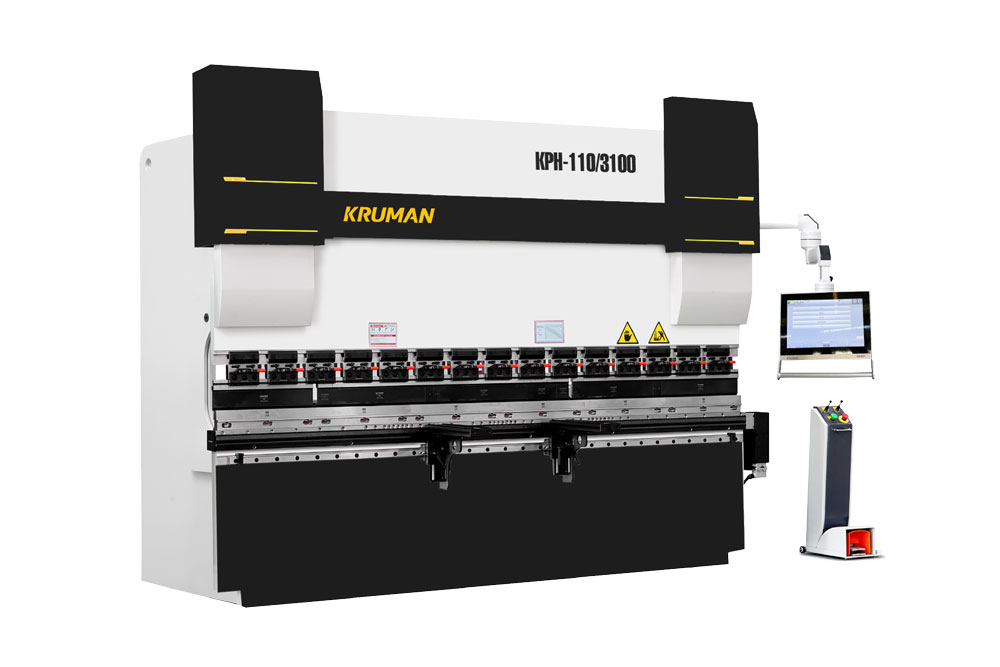

CNC SHEET BENDING MACHINE KRUMAN KPH SERIES
CNC SHEET BENDING MACHINE KRUMAN KPH SERIES
- Electric-hydraulic servo technology helps control force and ensure accurate bending angles.
- Increase bending efficiency by > 30%, save > 35% energy.
- Intuitive 2D programmable touch screen, reducing setup time and operational errors.
- Equipped with an automatic CNC crowning system to enhance bending accuracy.
- Sturdy machine frame, stable operation.
- Multiple upgrade options, robot connectivity.
Product Description
SERVO HYDRAULIC SYSTEM
The system is designed with an electric-hydraulic servo synchronization, allowing extremely precise alignment between hydraulic cylinders. Additionally, the system's pressure can be fully adjusted, enabling it to meet different bending force requirements and easily adapt to various practical applications.
QUICK TOOL CLAMP FOR PRESS MACHINE
The quick mechanical clamp mechanism helps shorten the time for changing the upper die. The upper die is directly installed from the front, convenient for replacement and alignment.
REXROTH OIL PUMP - GERMANY
Ability to reduce noise, limit operating noise, creating a quieter and more comfortable working environment for users. Furthermore, the pump has low sensitivity to oil contamination, allowing stable operation even when the oil contains impurities. This anti-pollution capability not only ensures stable performance but also significantly extends the pump's lifespan.
The automatic mechanical compensation system adjusts according to commands from the CNC program, helping to compensate for table deformation and maintain a consistent bending angle across the entire length of the workpiece.
Main Features
```html
MACHINE FEATURES
- The standard back gauge has 2 CNC axes (X) and (R) driven by an AC servo motor, moving by ball screw, enhancing positioning accuracy.
- Press brake uses the CNC DA53T controller from Delem Netherlands.
- High-end hydraulic system Hawe - Germany. Oil pump from Rexroth – Germany, Schneider electrical equipment - France, ensuring stable machine operation.
- Electric-hydraulic servo technology helps control force and ensures precise bending angles.
Kruman KPH series hydraulic press brake is equipped with an automatic CNC crowning system to increase accuracy during bending.
TECHNICAL SPECIFICATIONS OF CNC HYDRAULIC PRESS BRAKE KRUMAN KPH SERIES
MODEL | Bending force | Bending length | Distance between machine walls | Bending stroke | Number of axes | Opening | Throat depth | Ram speed down / bending / retracting | Machine dimensions | Main motor power | Oil tank volume |
(kN) | (mm) | (mm) | (mm) |
| (mm) | (mm) | (mm/s) | (mm) | (kW) | (L) | |
KPH-35/1250 | 350 | 1,250 | 950 | 150 | 4 | 440 | 300 | 260 / 22 / 260 | 2,060 × 1,330 × 2,120 | 5.5 | 95 |
KPH-65/1500 | 650 | 1,500 | 1,150 | 180 | 4 | 450 | 350 | 260 / 18 / 200 | 2,310 × 1,380 × 2,205 | 7.5 | 110 |
KPH-65/2500 | 2,500 | 2,150 | 180 | 4+1 | 450 | 350 | 260 / 18 / 200 | 3,330 × 1,450 × 2,200 | 7.5 | 200 | |
KPH-110/3100 | 1,100 | 3,100 | 2,600 | 220 | 4+1 | 490 | 410 | 260 / 18 / 200 | 3,910 × 1,540 × 2,390 | 12.4 | 200 |
KPH-160/3100 | 1,600 | 3,100 | 2,600 | 220 | 4+1 | 490 | 410 | 240 / 16 / 200 | 3,910 × 1,550 × 2,495 | 17.8 | 200 |
KPH-220/4100 | 2,200 | 4,100 | 3,600 | 220 | 4+1 | 490 | 410 | 180 / 13 / 170 | 4,910 × 1,830 × 2,625 | 21.4 | 200 |
To receive a detailed quotation for the CNC sheet metal press brake KRUMAN KPH SERIES, please contact the hotline at 1900 9410 or leave your information on the website weldcom.vn for the earliest support.
