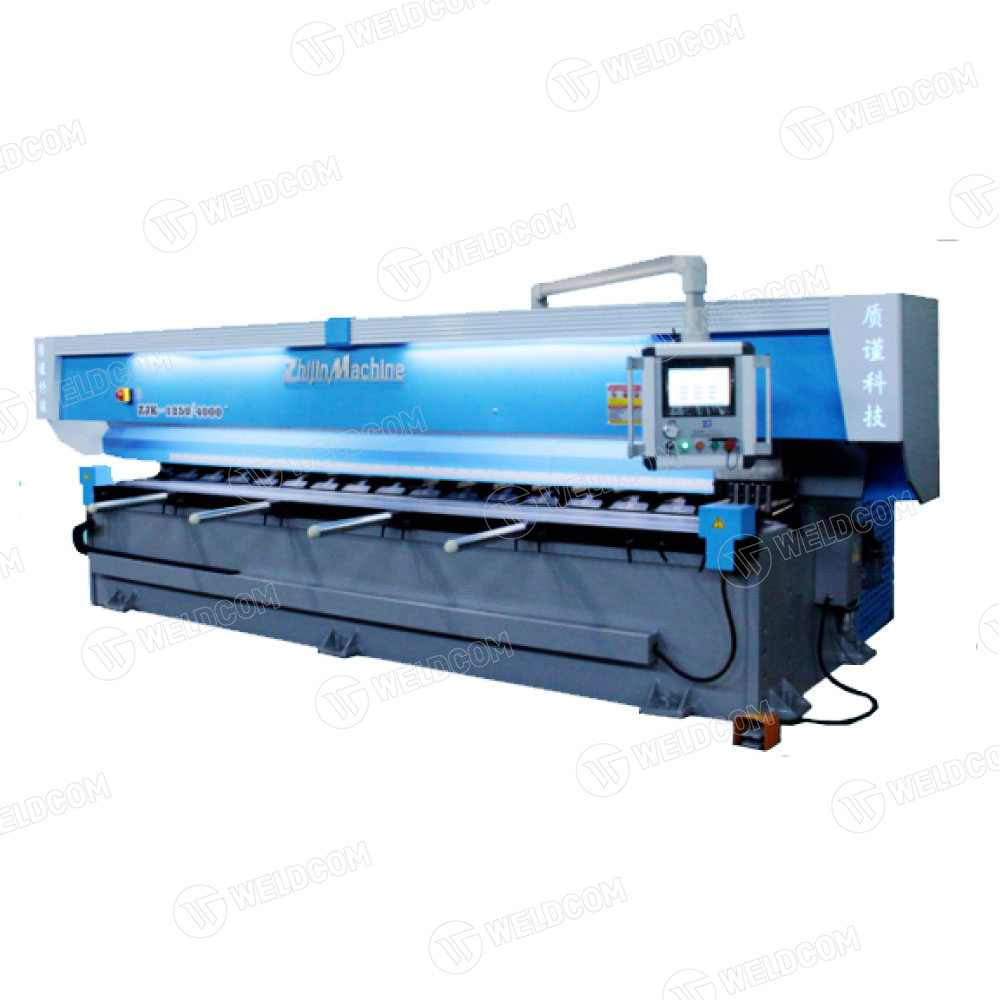

Vertical Planer ZJKV 1250x4000
Vertical Planer ZJKV 1250x4000
Print page
- The equipment is designed with frame structure, high strength bolt connection, good overall rigidity and small deformation.
- The outstanding advantages of the machine are heavy load, high speed and high efficiency.
- The machine is made of carbon tool steel and the hardness is above HRC55 after quenching, so the wear of the table is very small, helping to prolong the life of the device.
- Using 5.6KW high-speed, high-power servo motor. The machine is equipped with 4 cutting tools at the same time. The maximum cutting depth is 1mm, 3 times the efficiency of traditional equipment.
Main Features
Salient features:
- The equipment is designed with frame structure, high strength bolt connection, good overall rigidity and small deformation.
- The outstanding advantages of the machine are heavy load, high speed and high efficiency.
- The machine is made of carbon tool steel and the hardness is above HRC55 after quenching, so the wear of the table is very small, helping to prolong the life of the device.
- Using 5.6KW high-speed, high-power servo motor. The machine is equipped with 4 cutting tools at the same time. The maximum cutting depth is 1mm, 3 times the efficiency of traditional equipment.
Advantage of Zhijin vertical planer
- Solid frame structure, high stability
- Plate press oil cylinder: advanced structure, high stability
- Presser foot: advanced structure, high precision and stability.
- Rear workpiece feed mechanism: allows direct connection to ensure the accuracy of back workpiece contact.
- Tool holder: processing technology with precision and long life.
- Working table panel thickness: 60x60mm, heat-treated alloy material, bottom screws are adjustable, precision and long life.
- Ray leads from famous brand Rexroth.
- Use spray cooling system
- Use 19 inch color touch screen
- Using a large-capacity Servo main motor, ensuring high system stability.
Using high quality accessories:
- Guide Rexroth
- TBI ball screw
- 19 inch color touch screen
- Servo System Easycat
- Yuken . hydraulic valve
- Cable Igus
- Proximity switch: Omron
- SRNA cooling system
- Main electrical components Schneider
| SPECIFICATIONS | UNIT | ZJK-1250×3200 | ZJK-1250×4000 | ZJK-1500X3200 | ZJK-1500X4000 |
|---|---|---|---|---|---|
| Max. sheet width | mm | 1250 | 1250 | 1500 | 1500 |
| Max. sheet length | mm | 3200 | 4000 | 3200 | 4000 |
| Max. sheet thickness | mm | 4 | 4 | 4 | 4 |
| Min. sheet thickness | mm | 0.6 | 0.6 | 0.6 | 0.6 |
| Min. distance from edge to V-groove | mm | 6 | 6 | 6 | 6 |
| Max. cutting speed of X axis | m/min | 0-90 | 0-90 | 0-90 | 0-90 |
| Max. return speed of X axis | m/min | 0-90 | 0-90 | 0-90 | 0-90 |
| Max. distance of Y axis | mm | 1250 | 1250 | 1500 | 1500 |
| Max. speed of Y axis | m/min | 20 | 20 | 20 | 20 |
| Repeatability | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Max. speed of Z axis | m/min | 20 | 20 | 20 | 20 |
| Repeatability | mm | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Main power | X-axis | KW | 5.5 | 5.5 | 5.5 |
| Y/Z-axis | 1/1 | ||||
| Dimensions | Length | mm | 5300 | 6100 | 5300 |
| Width | mm | 2300 | 2300 | 2550 | 2550 |
| Height | mm | 1560 | 1560 | 1560 | 1560 |
| Weight | Ton | 7.2 | 8.2 | 8.5 | 8.8 |
| Power source | 380V/50Hz/3Phase | 380V/50Hz/3Phase | 380V/50Hz/3Phase | 380V/50Hz/3Phase |
