MAIN PARTS

• Machine frame: 01 set
• Welding torch and center pulling rod system: 02 sets.
• Welding guide device: 02 sets
• Flux recovery system: 02 sets.
• Welding source: 4 sets Megmeet Artsen CM500R and 2 sets Jasic MZ1000.
• Control system: 01 control cabinet, 01 control handle.
• Hose and cable system

GENERAL INTRODUCTION

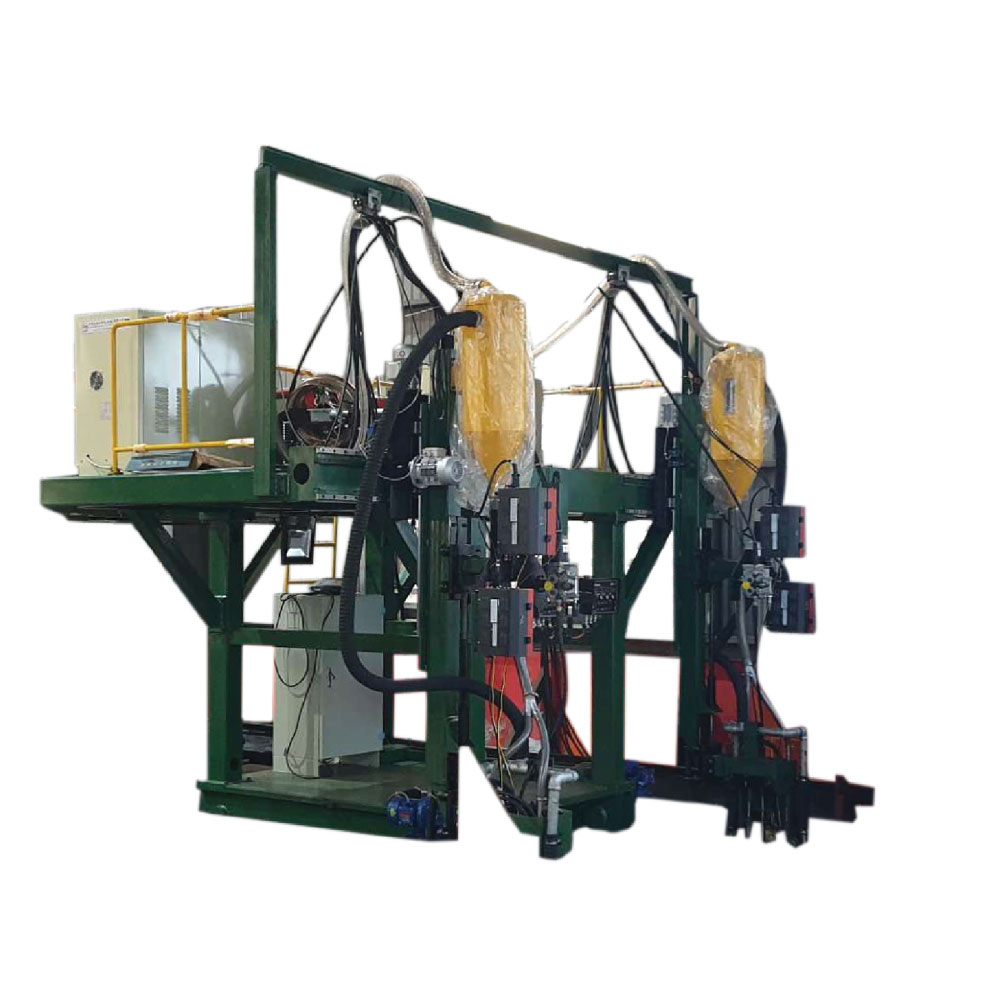

BTMZ1800- S3 is a smart gantry welding machine. It is dedicated to welding steel beam in steel structure factories Machine welds the beam in 1F posture, workpiece is stationary and welding gantry move during welding process.

BTMZ1800-S3 is suitable to weld many kind sizes of beam. Machine gains very high speed welding as a result of using 3 wires welding technology

OUTSTANDING FEATURES

• BTMZ1800-S3 applies 3-wires arc welding technology developed by BRUCO for better welding quality and higher welding speed. When machine welds thin beams, K≤10, the machine uses 2 wires Ø 1.6 welding mode. When machine welds thick beams K> 19, the machine automatically switches to 3-wires arc welding mode (wire Ø4.0 go first to creat deep penetration, 2 wires Ø1.6 go after to creat coating). Web height is 1800mm maximum
• The machine is equipped smart welding controller with touch screen, able to program, manage information, store data, connect Ethernet, report errors ...
• The machine is pre-installed with an optimal set of welding parameters to support effectively the operation process and minimize errors when setting parameters by operators
• BTMZ1800- S3 has a monitoring user function to help evaluate performance. It can be a timekeeping, report the machine condition, actual welding time and time when turn on the machine but not welding ...

PARAMETERS
