MAIN PARTS:

Main machine:

• Main frame, upper beam, web and flange clamping device, centering pulling rod system, reducer motor, manual support device.
• Output conveyor.

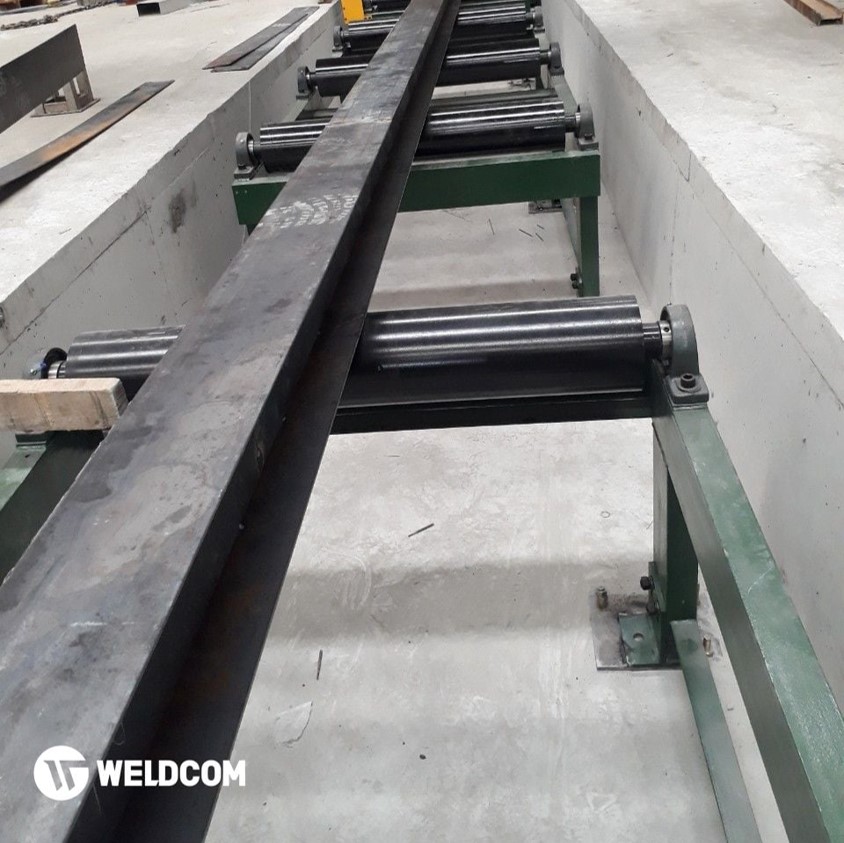

• Input conveyor.
• Hydraulic system: 01 pump station, high pressure hose, hydraulic cylinder.
• Control system: 01 set of control cabinet, control handle.
• Welding source: 02 sets of Megmeet ARTSEN Plus 500D (can be replaced by Megmeet EHAVE 350).

GENERAL INTRODUCTION

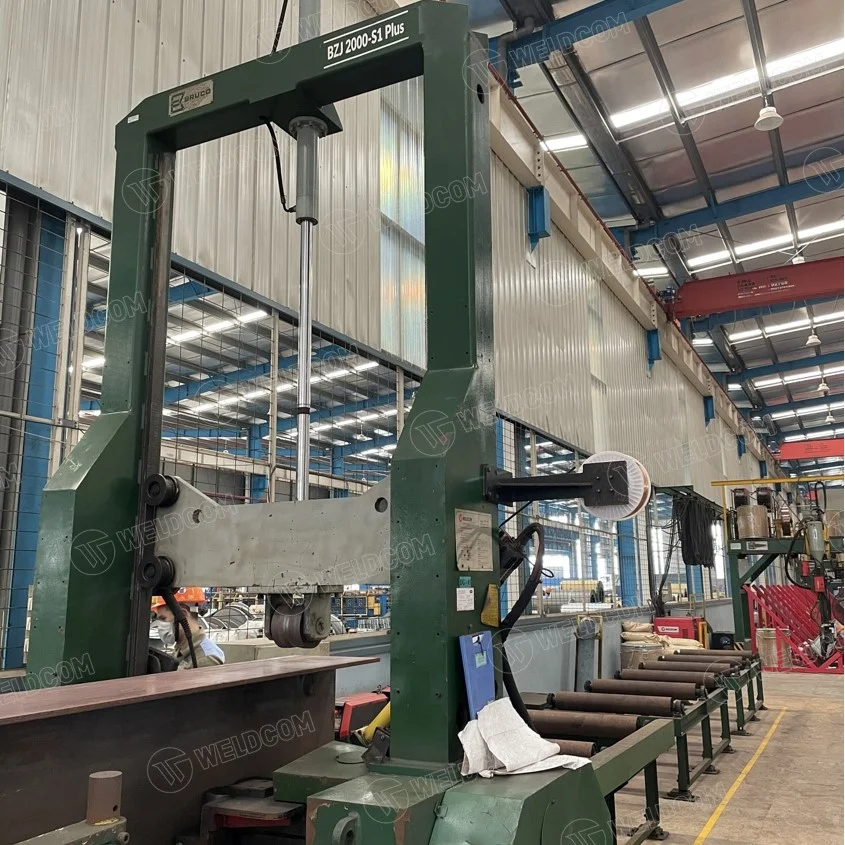

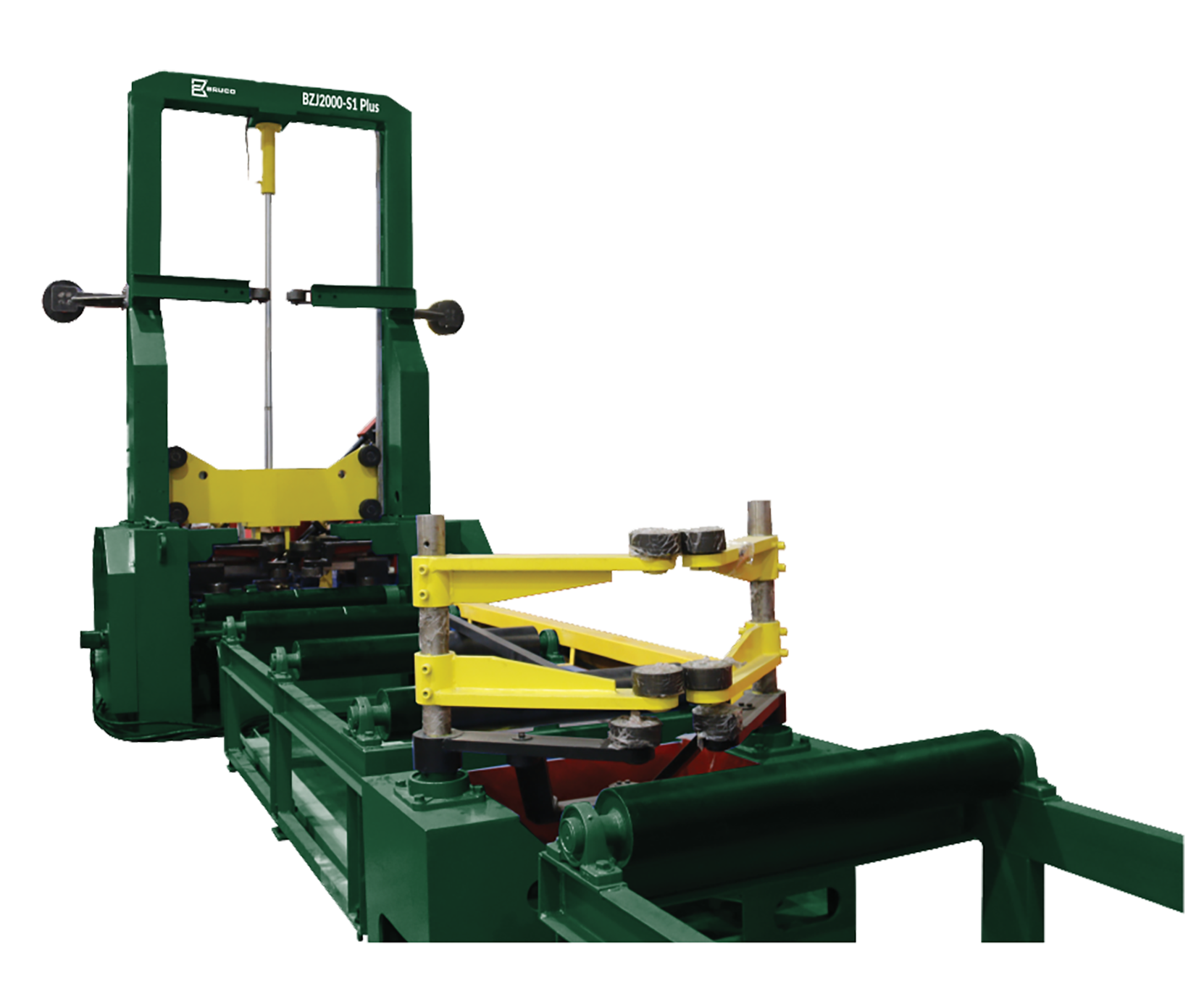

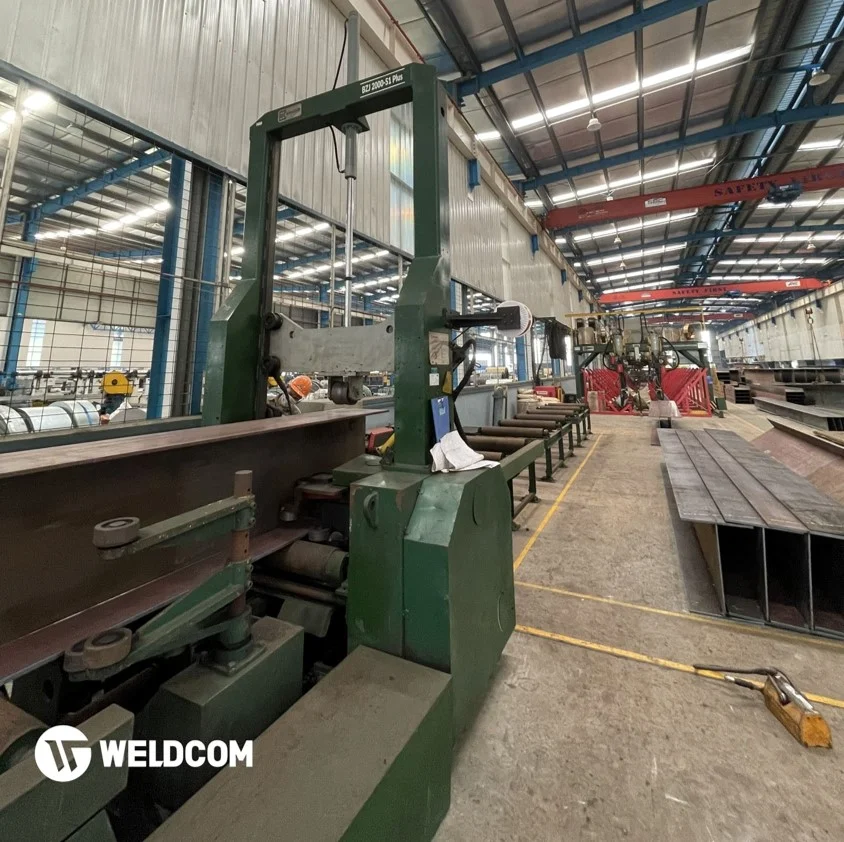

BZJ2000-S1 Plus is a specialized machine for assembling I and H beams in steel structure manufacture. The machine operates automatically and

accurately, replacing a lot of manpower and saving maximum working time.

OUTSTANDING FEATURES

• BZJ2000-S1 Plus has a smart welding controller with interactive touch screen which is capable to program, manage information, store
  data, connect Ethernet and report errors...
• BZJ2000-S1 is preinstalled a set of welding / assembling parameters data. Thus, the operation process is more convenient and limits
  errors when installing by operators.
• BZJ2000-S1 has a monitoring user funtion to help evaluate performance.

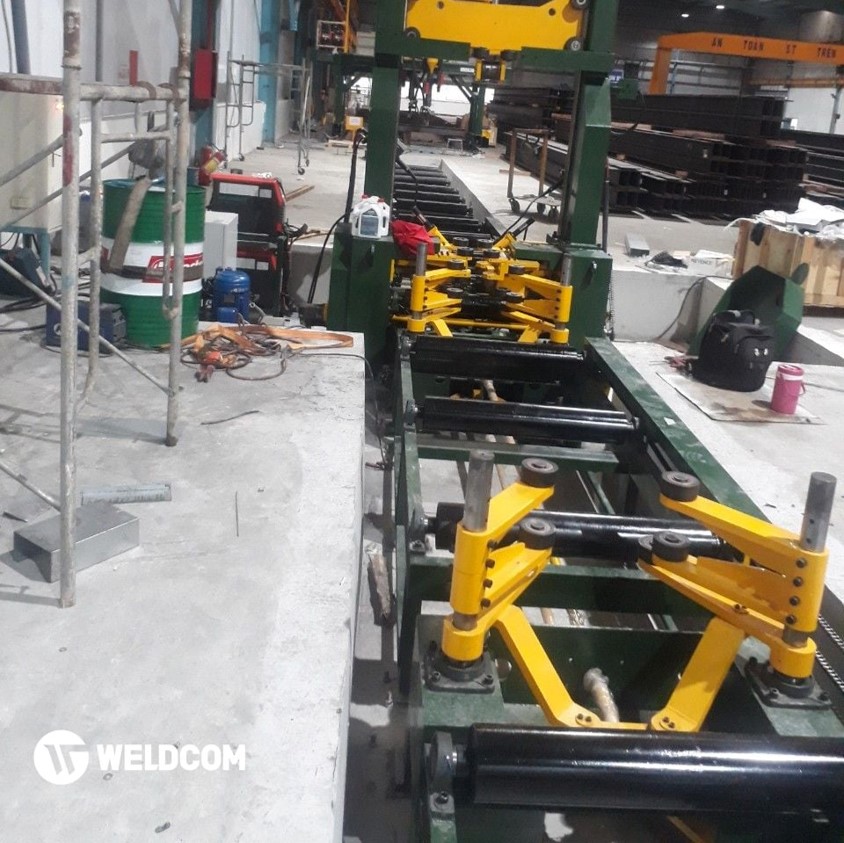

• Centering pulling rod system includes 4 rollers (press flange) and 8 rollers (press web), moves by screw and slider to get high accuracy.
• Guide roller of compression cylinder is designed large size, strong, stable and easy to adjust.
• Welding torch is located at the optimal position, as a result, the assembly point is very accurate.
• Torch clamping device is designed strong and flexible ensure that the assembly point is always in the right position.
• The main motor locates under the machine body to save space and keep safely when operating.
• Hydraulic system is compact with only 160L oil tank.
• 30% higher productivity compared to normal machines
