Folding machine

Folding machines play an important role in the product finishing stage after cutting and punching. This equipment helps fold edges, bend edges, or create angles for metal sheets accurately, quickly, and without deforming the surface. Thanks to its flexible working capabilities, folding machines are widely used in mass production industries such as electrical cabinets, furniture, elevators, and metal household appliances. Let's explore with Weldcom to learn in detail what a folding machine is, how it works, its practical applications, and the criteria for choosing the most suitable equipment.

1. What is a folding machine in sheet metal processing?

• Folding machines are specialized equipment used to bend or fold metal sheets to the desired angle using mechanical or hydraulic pressing and folding mechanisms.
• Unlike press brakes, folding machines operate based on the angle rotation principle of the folding beam, not using pressing blades, which helps reduce deformation and limit surface scratches. Therefore, the machine is particularly suitable for edge folding, edge bending, or creating precise folds on thin sheets, commonly seen in the production of roofing sheets, electrical cabinet shells, air ducts, sunshades, and decorative metal details.

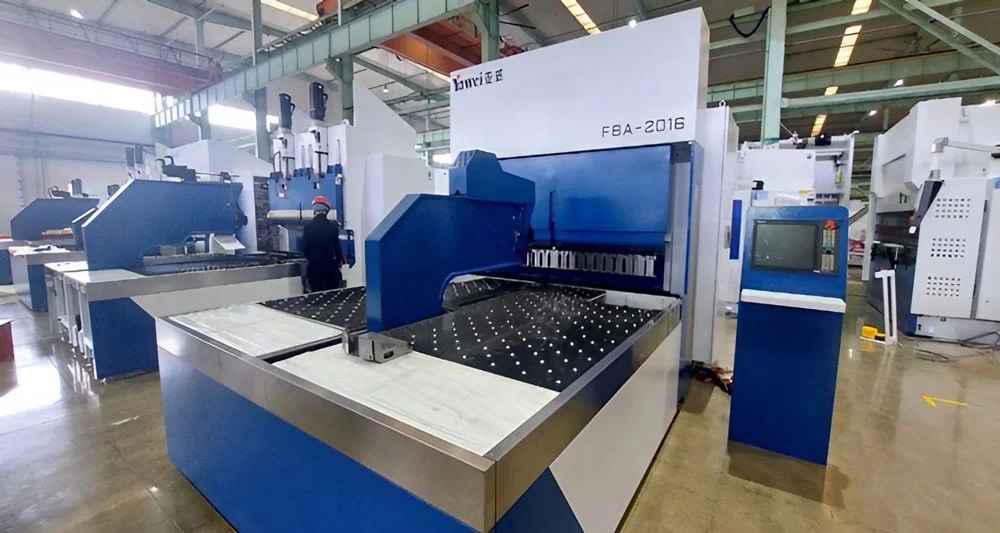

What is a folding machine in sheet metal processing?

2. Basic structure of a folding machine

A standard folding machine in the sheet metal processing industry usually has a sturdy structure, flexible drive mechanism, and high precision. The main components include:

2.1. Machine frame (Frame)

• It is the main load-bearing structure, usually made of solid welded or cast steel to ensure rigidity.
• Many famous brands use stress-relieving annealing methods before machining to make the machine frame sturdy, well-resistant to vibration, and achieve stability and precision during operation.

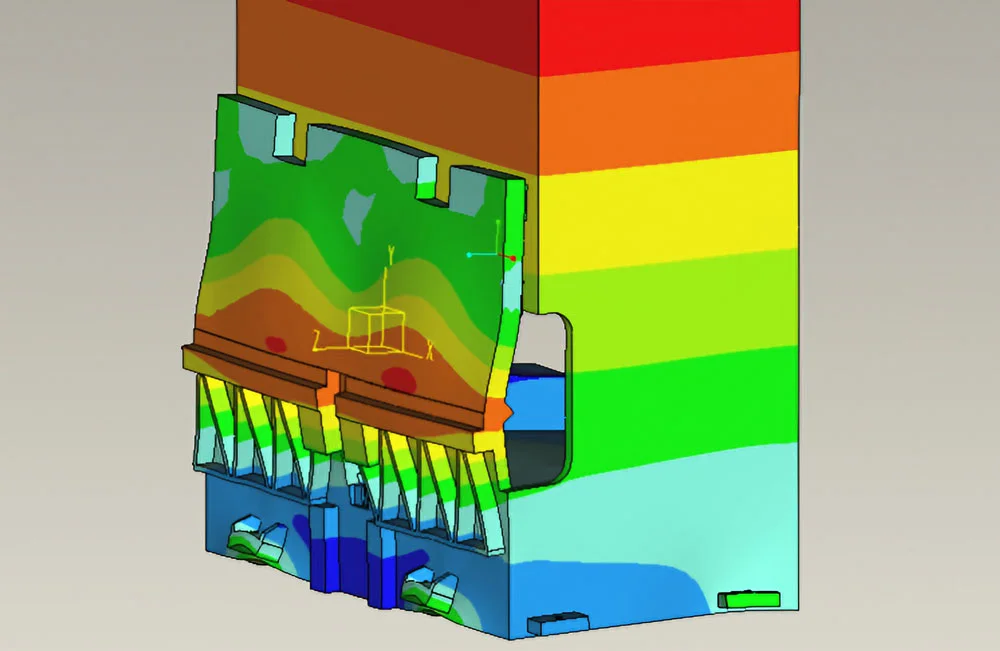

Structure of the folding machine: Machine frame

2.2. Clamping beam

• The clamping mold is used to hold the workpiece tightly before the folding mold performs the shaping work and is used to flatten the product when folding is needed.
• The upper clamping mold of the folding machine can be flexibly disassembled to serve the production of many products.
• For box-shaped products, the machine's hinge clamping mold part will be extremely useful in choosing the remaining two folding edges of the workpiece to avoid being crushed when folding.

2.3. Folding beam

• It is the part that performs the upward rotational movement at a predetermined angle, helping to create folds on the metal sheet on the folding machine.
• The folding mold of the machine performs diverse folding techniques on many types of materials such as arc folding, flattening, U-shape folding, Z-shape folding, closed shape folding, and even complex profile folding.

Structure of the folding machine: Folding beam

2.4. Material feeding and positioning device

• It is the part that functions to position, rotate, and transport the workpiece of the folding machine.
• The folding machine's positioning will accurately determine the original position of the metal sheet through the positioning system, from which the workpiece will be clamped tightly and moved to the folding area by the material feeding device.

2.5. Control system

Includes electrical, hydraulic, or CNC control panels, allowing:

• Setting the folding angle, folding speed, and clamping force.
• Storing folding programs for different products.
• Operating in manual – semi-automatic – automatic modes.

3. Advantages of folding machines

Compared to traditional bending or pressing methods, folding machines offer many distinct benefits for the sheet metal processing process, especially in the product finishing stage:

• High precision, no material deformation: Folding machines create folds by the rotational movement of the folding beam, not using pressing blades, helping to reduce warping and avoid surface scratches on steel, stainless steel, or aluminum.
• Increased productivity and product uniformity: The equipment allows for fast, accurate, and stable repetitive folding, suitable for mass production or details with many consecutive folding angles.

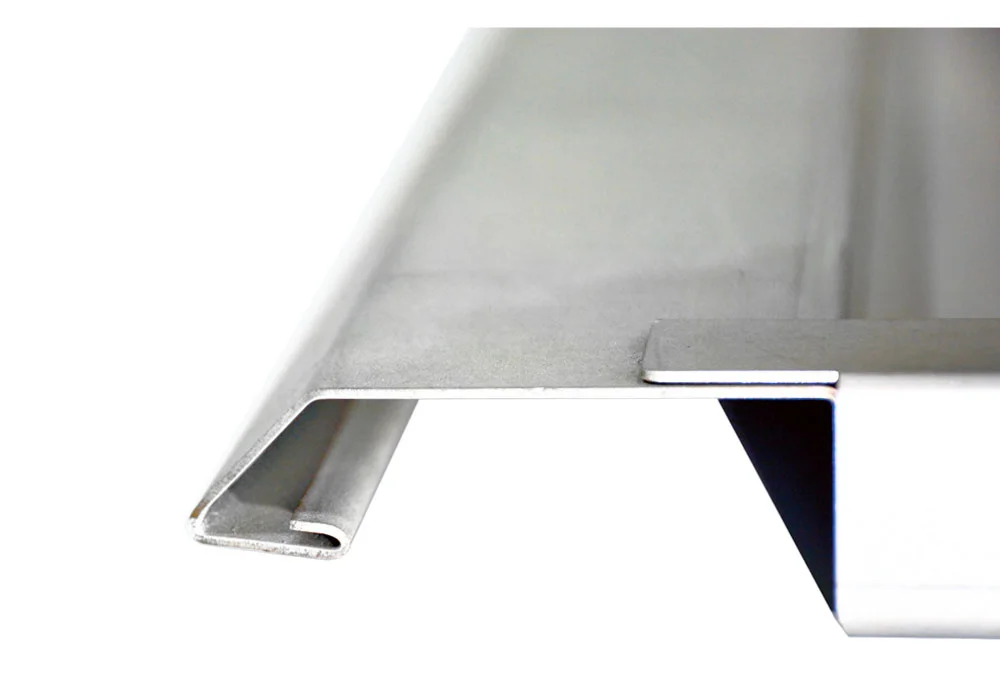

Advantages of folding machines

• Easy to operate and maintain: Folding machines have a simple mechanical structure, easy to learn and use, even for workers with little experience in sheet metal processing. Simple periodic maintenance, readily available replacement parts.
• Flexible with many types of materials: From steel, galvanized steel to stainless steel or aluminum, the machine can adjust the force and folding angle accordingly, meeting diverse production needs.

Thanks to these advantages, folding machines become the optimal choice for sheet metal – stainless steel – thin steel processing workshops, helping to increase productivity, save costs, and ensure stable product quality.

4. How to choose the right folding machine

To achieve high production efficiency, choosing the right type of folding machine is a decisive factor for productivity, accuracy, and mold life. Here are some important criteria when selecting:

4.1. Determine production needs

• Choosing a suitable folding machine depends on the specific "problem" of each factory, including productivity, output, size, and thickness of the material to be processed.
• Typically, input materials have a thickness of 0.35 – 3 mm and a sheet length of 1.2 – 4 m.
• For industrial production or mass processing enterprises, investing in automatic CNC folding machines is a top priority, helping to achieve high accuracy, stable speed, while reducing setup time and dependence on the operator's skill.

4.2. Brand and after-sales service

• When investing in folding machines, brand and after-sales service play a particularly important role. Enterprises should prioritize choosing reputable suppliers with practical implementation experience, warranty centers, and technical teams in Vietnam, along with readily available spare parts to ensure the equipment always operates stably.
• A good supplier not only sells folding machines but also accompanies throughout the product lifecycle – from configuration selection advice, installation, operation training to periodic maintenance and quick technical support when problems arise.

Choosing the right folding machine line and reliable supplier is the solid foundation for effective and sustainable production operations.

5. Should you self-manufacture a folding machine?

• Many small mechanical workshops often choose the "self-manufacture folding machine" direction to save initial investment costs. However, in reality, this solution poses many risks regarding stability and operational safety, especially when working with thick steel or stainless steel – materials that require large folding forces and sturdy machine structures.
• On the contrary, genuine CNC folding machine lines are developed based on research and production experience with R&D budgets reaching billions of dong each year. Each product of the brand undergoes strict inspection processes, is widely applied with thousands of machines supplied to the global market; at the same time, receiving feedback to continue researching to bring customers accuracy, stability, and high safety when choosing products.

6. Weldcom – A reputable folding machine supplier in Vietnam.

With over 20 years of experience in the field of sheet metal processing equipment, Weldcom is a leading distributor of folding machines, stainless steel folding machines, hydraulic folding machines, and CNC machines serving various industries such as steel structures, electrical cabinets, air ducts, metal furniture, and construction materials.

6.1. Providing high-quality, high-performance folding machines

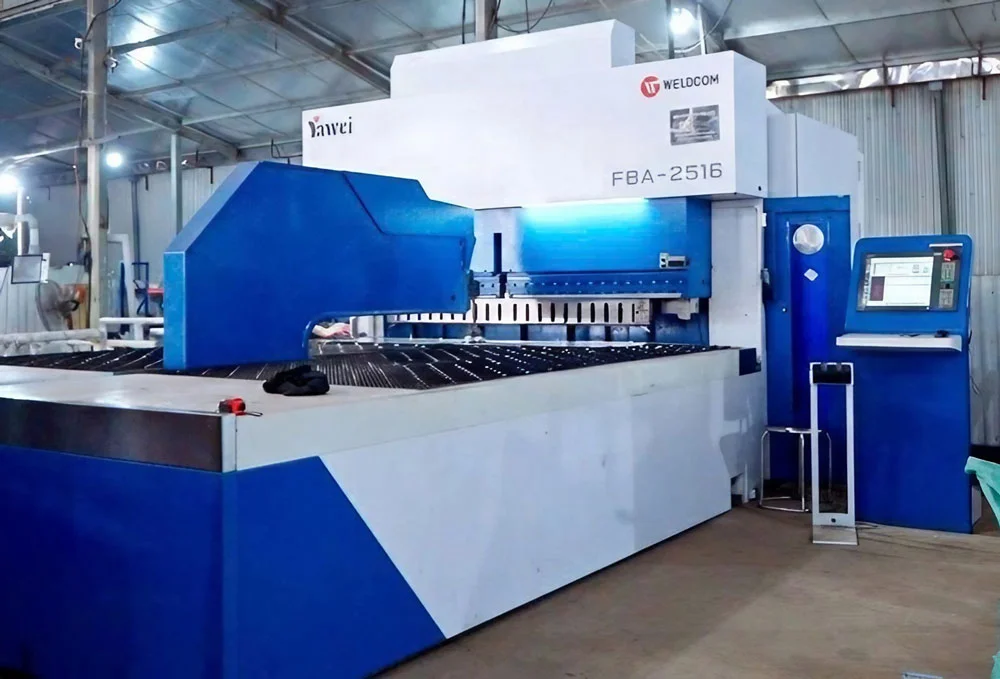

Weldcom partners with manufacturer Yawei to bring customers high-quality automatic folding machines. Weldcom – A reputable folding machine supplier in Vietnam.

• The equipment is specially designed for mass processing of box-shaped products and complex profiles, effectively working with carbon steel, stainless steel, and aluminum with thicknesses from 0.35 – 3 mm.
• High automation requires only one operator, all workpiece rotation operations will be performed by the machine.
• The FBA machine uses multi-purpose clamping and folding molds made of specialized steel, fully operated by servo motors, allowing handling of various folding forms such as U, Z, closed shapes, or curved bends without frequent blade changes.
• The automatic positioning – rotating – feeding system helps the machine achieve speeds twice as fast as CNC press brakes and four times as fast as manual operations.

Especially, folding machines can be combined with material handling support systems such as robots, material loading and unloading systems, conveyors to enhance automation.

6.2. Comprehensive integrated solutions & after-sales service

• Weldcom not only distributes individual folding machines but also provides a complete sheet metal processing line solution including: Cutting – Punching – Folding – Welding – Painting – Automation robots.
• Weldcom's engineering team is responsible for installation, training, warranty, and technology optimization, ensuring businesses operate efficiently from day one.

6.3. Quality commitment from Weldcom

• Genuine folding machine products – clearly inspected quality
• Nationwide technical support system
• Optimal solutions for all production scales and ready to upgrade the line when customers need it.

As a unit creating trends in sheet metal processing technology & supporting industries, Weldcom brings businesses modern, durable, and high-performance folding machines, helping to increase productivity and reduce operating costs comprehensively. Contact Weldcom now for advice on solutions and quotes for the most suitable folding machine for your business's production needs.
