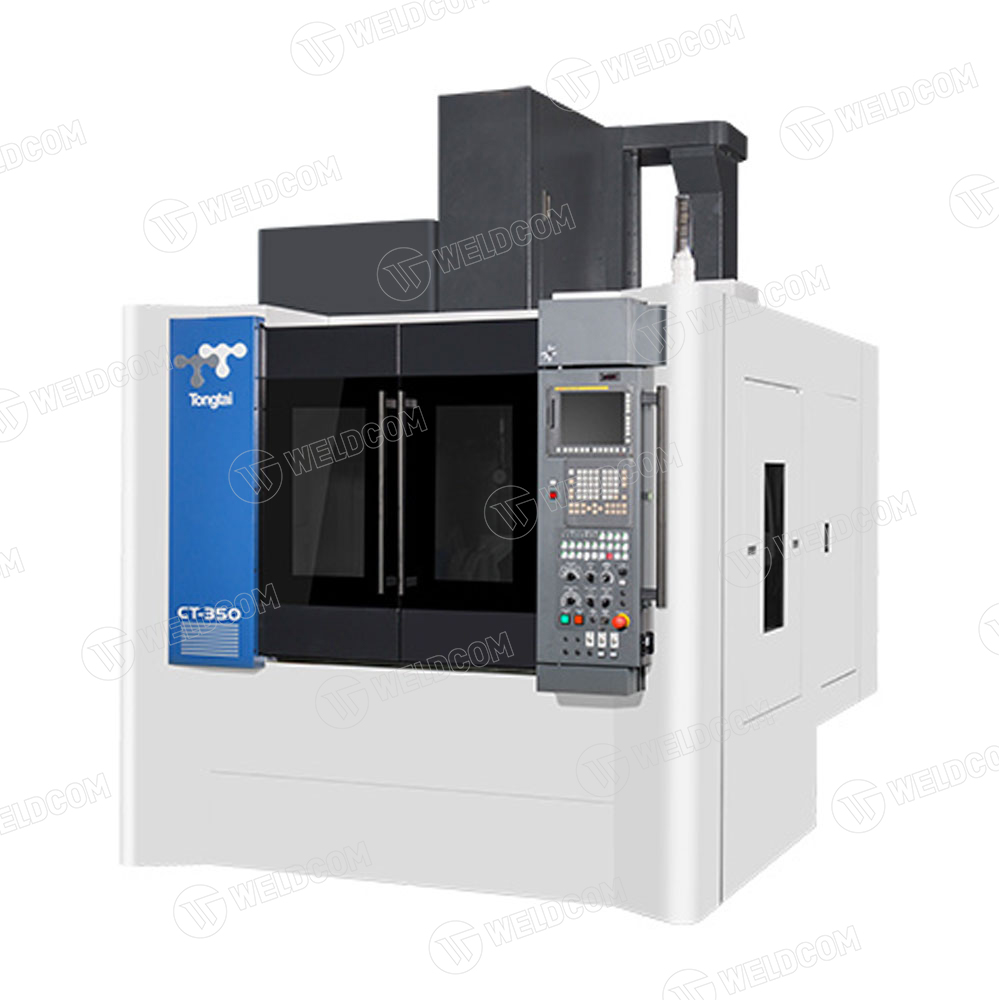

Tongtai CT-350 CNC vertical 5 axis milling machine
Tongtai CT-350 CNC vertical 5 axis milling machine
Print page
- Workpieces up to 380 mm / H220 mm
- Equipped with CAM table, which enables high precision and strong rigidity
- 5-axis machining can complete complex processes in one go
- Performance value at a great cost
Main Features
Tongtai CT-350 . CNC vertical 5 axis milling machine
- Workpieces up to 380 mm / H220 mm
- Equipped with CAM table, which enables high precision and strong rigidity
- 5-axis machining can complete complex processes in one go
- Performance value at a great cost
Specification
| Capacity | CT-350 |
| Table size(LxW) | Ø350 mm |
| Max. loading capacity | 200 kg |
| X/Y/Z axis travel | 400/510/510 mm |
| A/C axis travel | +30°~-120°/±360° deg |
| X/Y/Z axis rapid traverse | 36/36/30 m/min |
| A/C axis rapid traverse | 33.3/40 rpm |
| Spindle taper | 7/24 Taper No.40 |
| Spindle speed | 15000 (20000) rpm |
| Spindle motor | 18.5/11/7.5 (40/30) kW |
| Tool capacity | 24 (30) (40) pc |
