MAIN PART

• Main frame: 1 set
• Main rails: 1 pair
• Oxigen- gas torch: 1 set

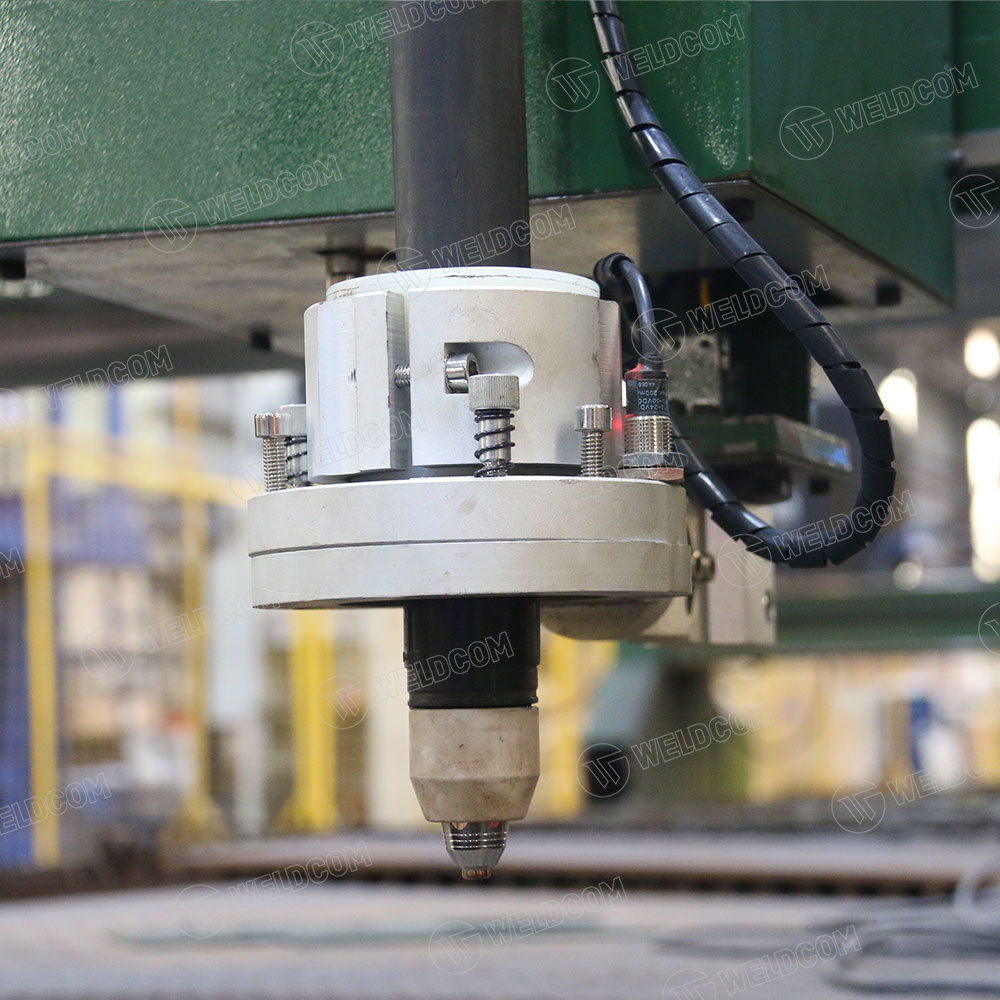

• Torch height controllers (THC) for plasma head cut (HYD XPTHC 100-II): 1 set
• Automatic ignition device for oxi gas head cut: 1 set
• CNC controller (CCM3): 1 set
• Servo motor: Hybird servo or Mitsubitshi Servo
• Nesting Sofware: SigmaNEST

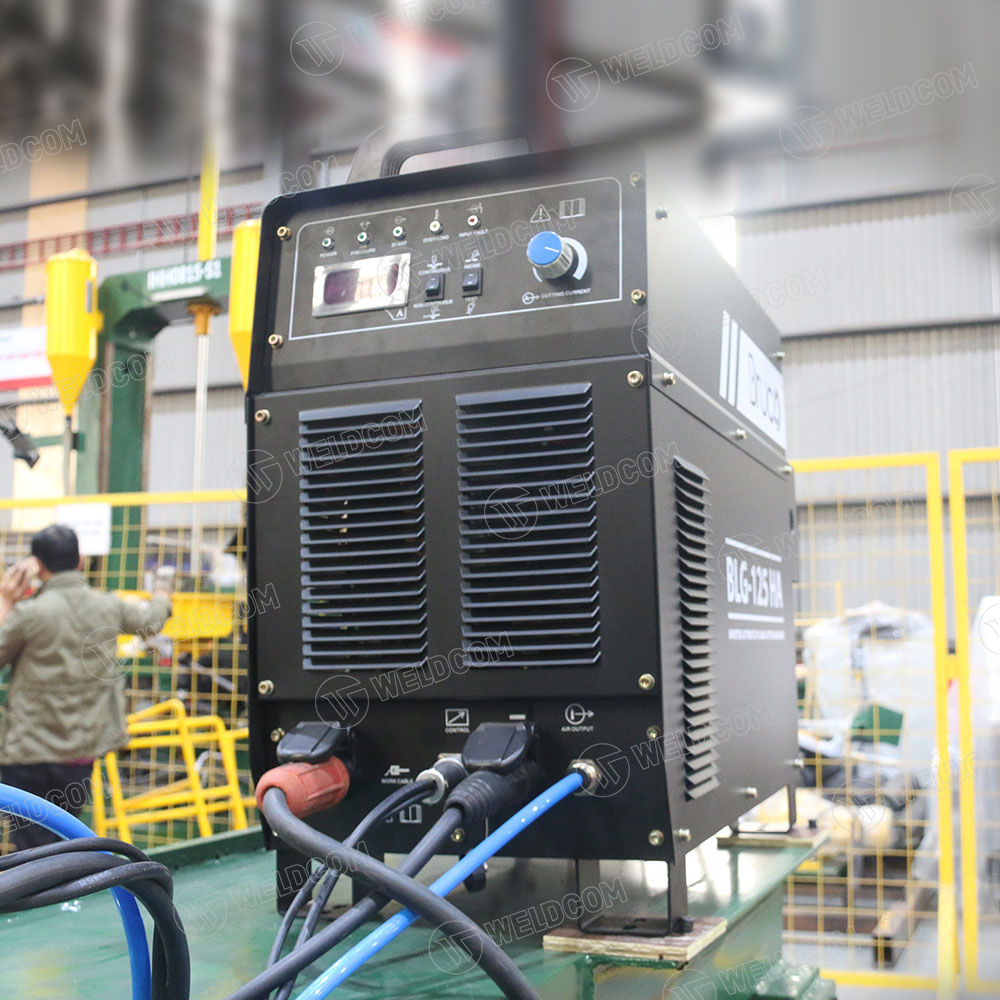

• Options for plasma source: BLG 125HA, Jasic 160,
• BLG200HA

GENERAL INTRODUCTION

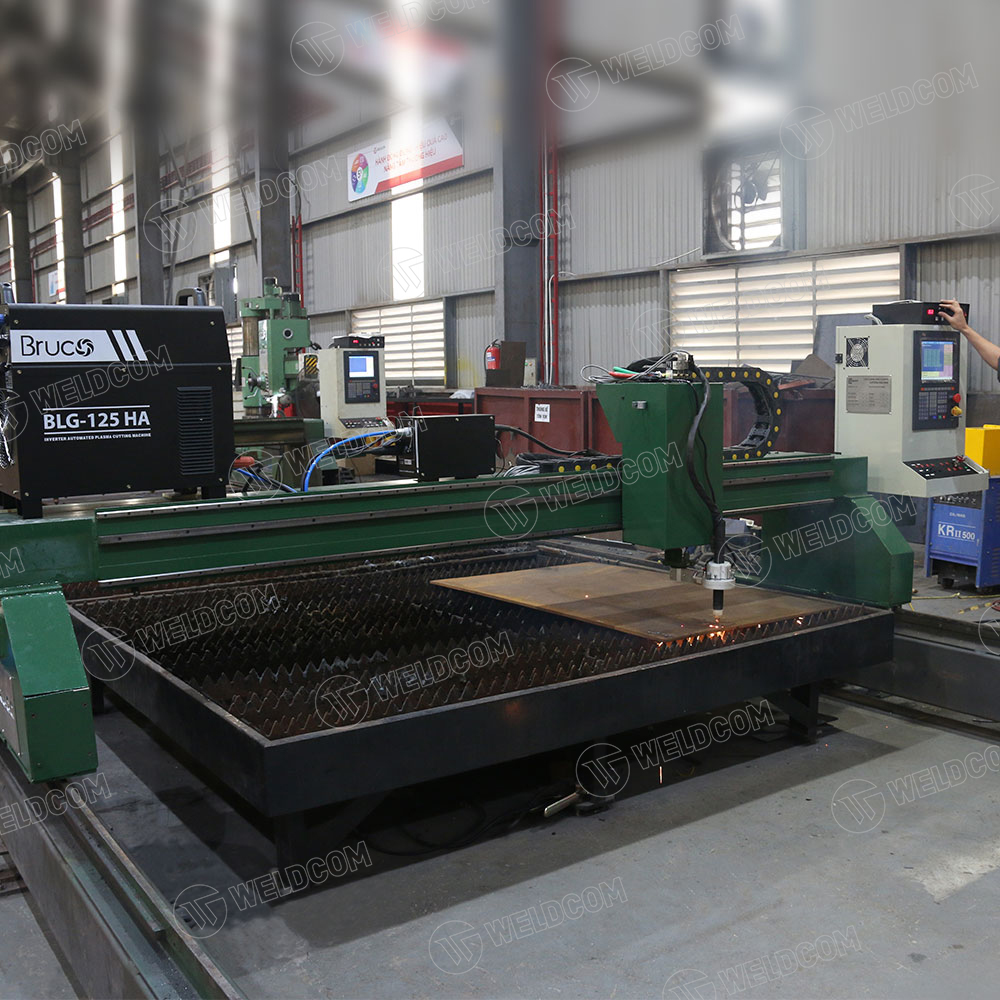

BLC3000 is a specialized device using to cut steel plates according to technical drawings.

The machine uses two cutting methods, which are oxygen-gas and plasma.

BLC3000 is widely applied in many fields such as steel structure manufacturing, steel trade, shipbuilding, metal processing…

OUTSTANDING FEATURES

• Steel frame with strong structure, can put direct Plasma source on the moving beam.
• The machine has built-in support for rails, customers do not need to prepare this support beam, more convenient for machine installation.

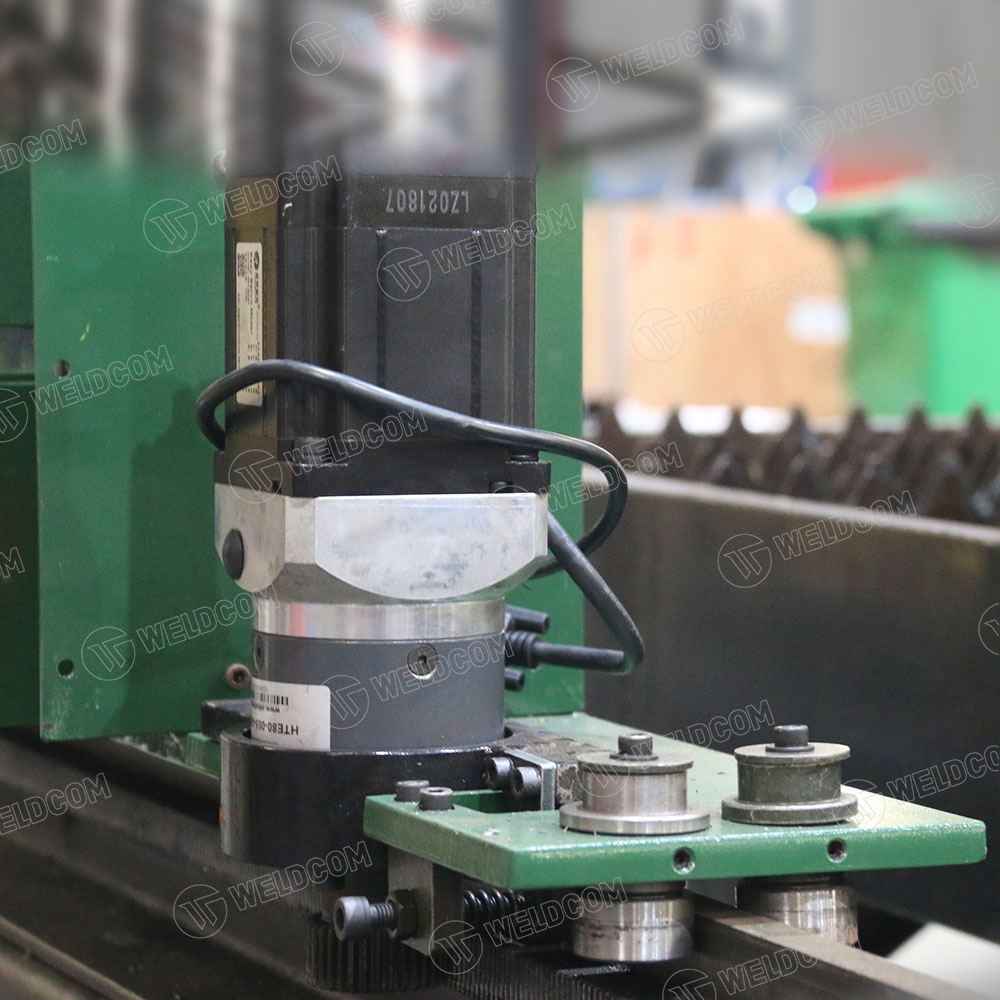

• Servo motor delivers high precision, ensuring the maximum travel speed of 10000mm / min

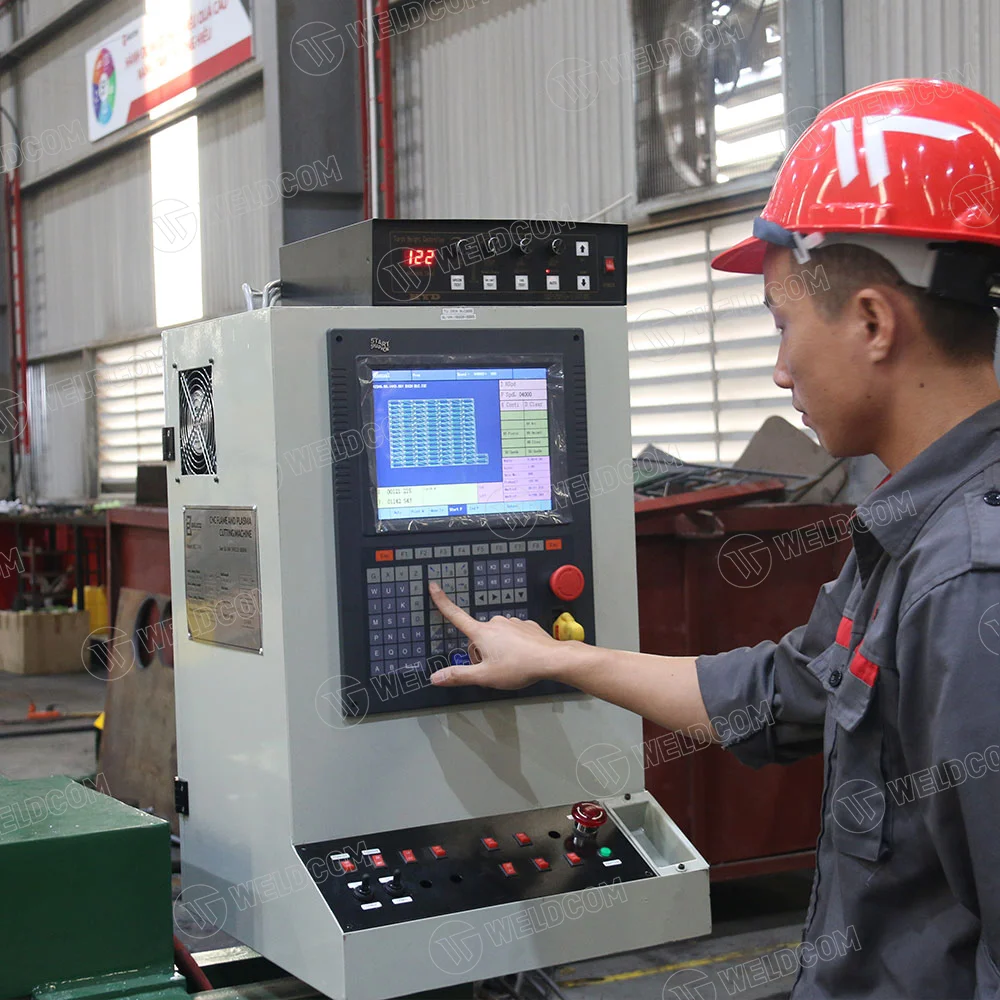

• Controller CCM3 10.4 inches integrated English language, convenient for using, many professional programs to cut metal sheet effectively, for example adjust the speed appropriately when cutting holes.
• Sigmanest is the best nesting software. Sigmanest has special programs to support cutting process, optimize nesting workpiece, optimize cutting path and many other effective functions …

PARAMETERS
