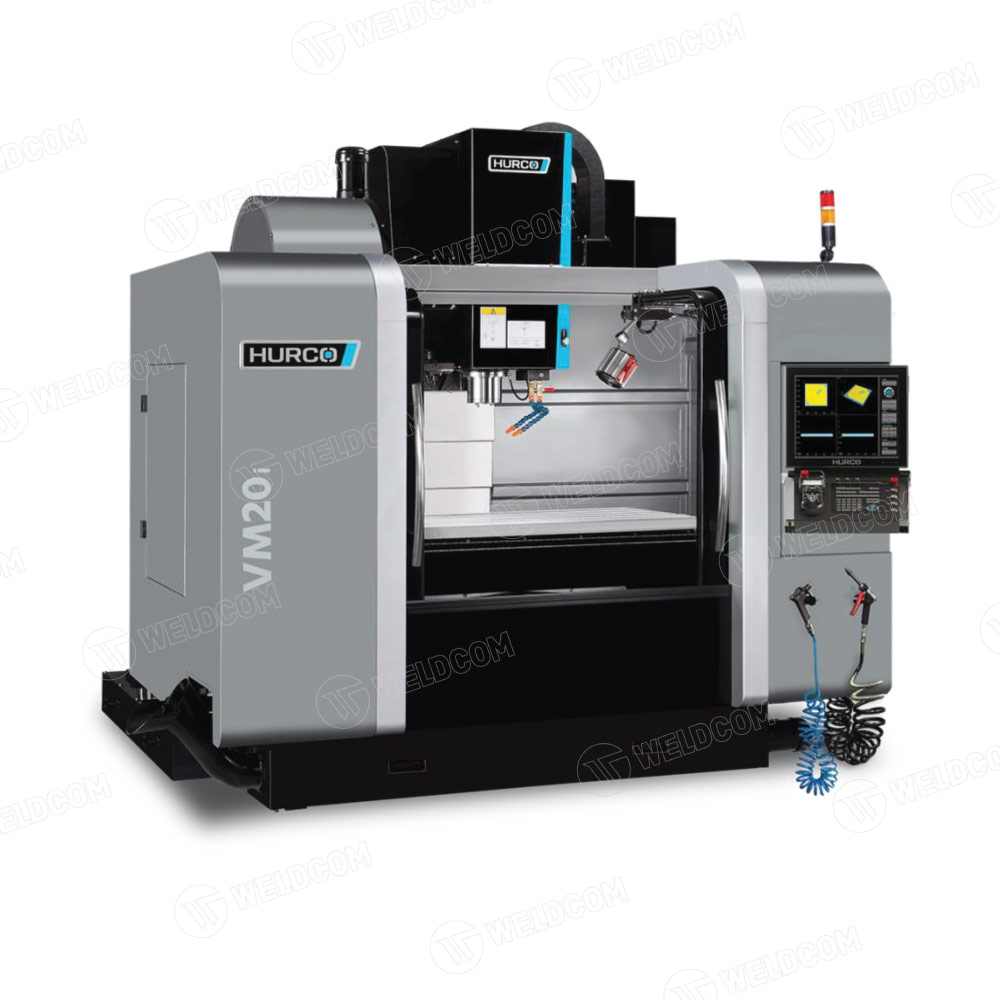

Hurco VM20i CNC vertical milling machine

Print page

The Hurco VM CNC Vertical Machining Center offers powerful machining in a compact size, and best value on the market. The perfect combination of size and function. Large workspace with impressive X journey but does not occupy a large area of the factory.

Get Quote Now

Main Features

Versatile, vertical machining center

Trung tâm gia công đứng VM CNC Hurco mang đến khả năng gia công mạnh mẽ với kích thước nhỏ gọn, và giá trị tốt nhất tên thị trường. Sự kết hợp hoàn hảo của kích thước và chức năng. Không gian làm việc lớn với hành trình X ấn tượng nhưng lại không chiếm diện tích lớn của nhà xưởng.

Features of CNC milling machine VM20i (standard)

High quality cast steel frame. Optimized with finite element analysis (FEA).
Fully shielded with wide bench access and opening side doors.
Wedge-locked super-load belts for all three axes.
Right LED light.
Security door lock according to ANSI B11.23
Direct drive Z axis with regenerative braking - No counterweight
The system cleans the machine floor and cools it around the main shaft.
Lead screw with 2 rows of balls. Already anchored at both ends.
Machine wash water gun and air gun.
Stackable metal tape cover.
Yaskawa 10,000 rpm AC spindle motor.
Billet roller.
Automatic central lubrication system.
Chrome-molly alloy steel spindle, with ABEC Class 7 bearings.
Electrical cabinet heat exchanger.
The system separates the lubricating oil from the coolant.
Servo drive AC Yaskawa Sigma V.
ITX Single Block Control Module
Fast moving speed 24 m/min
Quad core i5 2.4GHz processor.
4GB RAM memory.
Automatic tool change by manual 24 random positions.
Tool change time 2.5 seconds.
120GB solid-state drive.
Warranty 12 months.

CONTROL SYSTEM MAX 5

Motion control

Whether it's a conversation program or a G command, the Hurco's motion control is faster than other machines in its class

Double smoothness for curves
Pre-read up to 10,000 commands
Smooth motion with S curved profile
Selection of surface finish quality
Quick move coordinate system
Z axis automatically up when power failure
Rehabilitation of drill holes or taps after power failure or emergency use

Motion optimization

Motion optimization reduces machining times by up to 30% and improves surface finish while extending machine life. The software-based motion-optimized control system has a maximum, even cornering speed, which means there's no need to stop between two consecutive turns.

3D test simulation

The graphical interface of the WinMax Control System is remarkable for the operator. Hurco takes a step into the future with 3D inspection simulation graphics that are solid and can be 3D rotatable.

AdaptiPath (High-speed machining with constant cutting)

AdaptiPath is a new feature of the conversation program for machining. This is a feature being used on modern CAM software to help speed up workpiece removal, well support roughing and reduce machining time, increase tool life by calculating constant cutting amount. .

Lines and arcs

This feature illustrates how simple the control system can be while simplifying complexity. You can program any complex contour using lines and arcs without having to figure out the missing data.

AutoCalc (Auto Calculation)

Hurco AutoCalc is a prime example of how innovative technology can work: it will give you the results you want. With advanced algorithms running in the background, you simply enter the desired size and check the numbers automatically calculated in the rest.

Ultipocket

Hurco's popular UltiPocket® software adds milling processes to machine interior areas using conversational programming - providing full functionality for full interior machining. The spiral feed feature also offered by Hurco allows the tool to be dropped with a specified slope and radius, which is then connected to the toolpath at the machined surface.

For more information about Hurco products, please contact Weldcom at hotline: 19009410 or leave information in the quote section.
